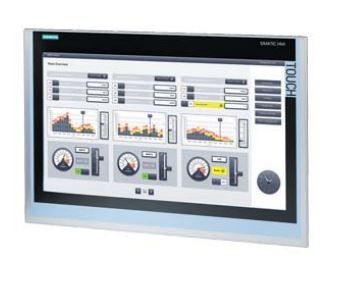

Control and control panels SIEMENS The Simatic TP2200 Comfort series have found their wide application in tasks of solving automatic (system) control and monitoring, in almost any industry, largely due to the ability to view HTML documents through Microsoft Pocket Internet Explorer. At the same time, the Microsoft Windows CE operating system, installed complete with Simatic TP2200 Comfort series control panels, fully meets the standard operating requirements under maximum load conditions, and also allows you to install additional software for operation. Due to the use of this particular version of the operating system, the panel manufacturer SIEMENS It was possible to eliminate the integration of the hard disk and the fan, so that there are no risks of strong vibration and shock loads during daily operation, which are categorically unacceptable for industrial computers (PCs). An additional advantage of multifunctional panels is their quick start and ready to work immediately after power is turned on. As a rule, the control and control panels of the Simatic TP2200 Comfort series can be equipped with both a touch screen and a special (membrane) keyboard.
You can buy brand control and control panels SIEMENS Simatic series TP2200 Comfort in our company, on the issue of selection, please contact our engineers by phone saluteh or email saluteh.
Technical characteristics of SIEMENS Simatic TP2200 Comfort series control and control panels:
- Screen Type: Graphic LCD (TFT);
- Screen diagonal: up to 21.5 inches;
- Number of colors: up to 16 million;
- Screen Resolution: 1920 x 1080 dpi;
- Type (device) of data entry: touch panel;
- Touch Screen Type: analog/resistive;
- The range of permissible voltages: from 19.2 to 28.8 V;
- Number of switchable languages: until 23;
- Number of supported languages: until 23;
- Memory (RAM): up to 24 MB;
- Types of supported interfaces: RS 422/485, 2 x USB, MultiMedia Card (MMC) /Secure Digital (SD) card;
- Supported (data download) protocols: MODBUS, PROFINET, PROFIBUS, MPI, IRT, EtherNet/IP;
- Additional equipment: printer;
- Protection classes: IP65 (front panel).
