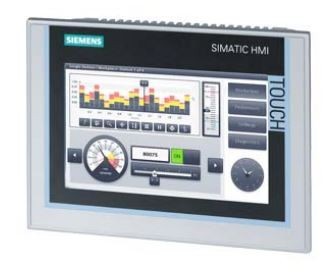

Control and control panels SIEMENS The Simatic TP700 Comfort series have found their wide application in tasks of solving automatic (system) control and monitoring, in almost any industry, largely due to the ability to view HTML documents through Microsoft Pocket Internet Explorer. At the same time, the Microsoft Windows CE operating system, installed complete with Simatic TP700 Comfort series control panels, fully meets the standard operating requirements under maximum load conditions, and also allows you to install additional software for operation. Due to the use of this particular version of the operating system, the panel manufacturer SIEMENS It was possible to eliminate the integration of the hard disk and the fan, so that there are no risks of strong vibration and shock loads during daily operation, which are categorically unacceptable for industrial computers (PCs). An additional advantage of multifunctional panels is their quick start-up and ready to work immediately after power is turned on. As a rule, the control and control panels of the Simatic TP700 Comfort series can be equipped with both a touch screen and a special (membrane) keyboard.
You can buy brand control and control panels SIEMENS Simatic series TP700 Comfort in our company, on the issue of selection, we ask you to contact our engineers by phone saluteh or email saluteh.
Technical characteristics of SIEMENS Simatic TP700 Comfort series control and control panels:
- Screen Type: Graphic LCD (TFT);
- Screen diagonal: up to 7 inches;
- Number of colors: up to 16 million;
- Screen Resolution: 800 x 480 dpi;
- Screen life: up to 80,000 hours;
- Type (device) of data entry: touch panel;
- Touch Screen Type: analog/resistive;
- Supply voltage: up to 24 V;
- The range of permissible voltages: from 19.2 to 28.8 V;
- Input current: from 0.5 A;
- Power consumption: up to 12 Watts;
- Number of switchable languages: until 23;
- Number of supported languages: until 23;
- Memory (RAM): up to 12 MB;
- Type of CPU: X86;
- Configuration software: Microsoft WinCC Comfort (Advanced, Professional);
- Working interfaces: RS 422/485, 2 x USB;
- Additional applications: Internet Explorer, Word Viewer, Excel Viewer, PDF Viewer, Media Player, WinCC SmartServer, WinCC Audit;
- Connected peripheral equipment: printer, MMC/SD-Card/USB-flash, network camera;
- Data download protocols: Ethernet, USB, DP, MPI /PROFIBUS;
- Possible applications in hazardous areas: ATEX 2, ATEX 22, IECEx 2, IECEx 22;
- Protection classes: IP20 (rear panel), IP65 (front panel);
- Operating temperature range: from 35 to 50 °C;
- Temperature regime for transportation: -20 to 60 °C;
- Weight: up to 1.4 kg.
