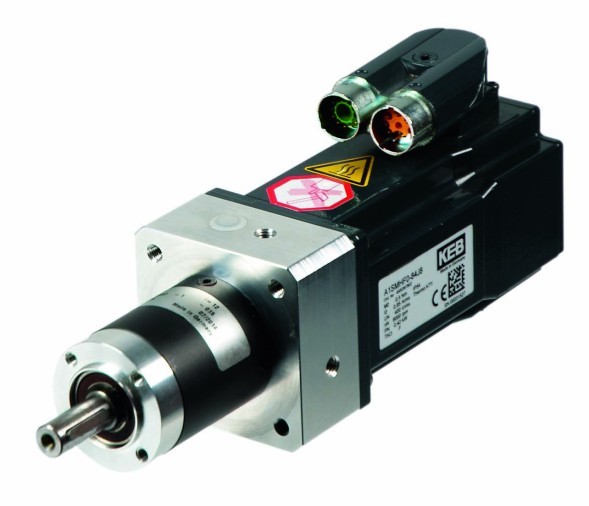

Planetary transmissions series SGPP from the company KEB They have one and two-stage configurations, five available performance dimensions with high torque, dynamics and efficiency of over 97%. Due to the direct connection and optimized motor design, this line is characterized by low backlash and noise levels in operation.
The high rigidity of the mechanical design, reliability and accuracy in the performance of work allow us to use this line of servomotors to implement a wide variety of technological tasks. Optionally, the following design elements are available to complete the gear motor: a spring or magnetic brake, various types of feedback interfaces, and a ventilation unit.
Technical characteristics of planetary gear motors of the KEB SGPP series
- Gear ratio: 5 - 40;
- Number of steps: 1, 2;
- Nominal torque: 5 - 460 Nm;
- Maximum torque: 8 - 736 Nm;
- Motor power: 0.75 - 7.5 kW;
- Motor speed: 2800 - 5000 rpm;
- The degree of protection of the case: IP55;
Standard sizes of gearboxes of the KEB SGPP series
Type of gearbox | Nom. moment, Nm | Max. moment, Nm | Max. speed motor speed, rpm |
SGPP 1 | 5 - 11 | 8 - 175 | 5000 |
SGPP 2 | 15 - 28 | 24 - 45 | 4500 |
SGPP 3 | 38 - 85 | 61 - 136 | 4000 |
SGPP 4 | 95 - 115 | 136 - 152 | 3000 |
SGPP 5 | 210 - 460 | 336 - 736 | 2800 |
You can buy planetary gear motors of the KEB SGPP series, find out the price and more information about the product by contacting our specialists,
