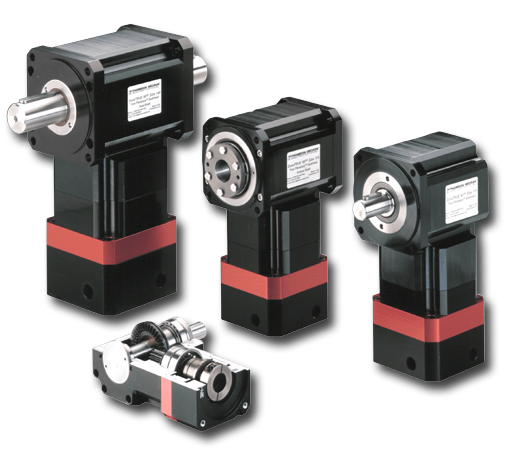

The gear family DuraTRUE from the company Kollmorgen It is represented by high-precision planetary gearboxes with various variations in the design of the connection for the driven equipment: coaxial, angular with solid, hollow or double shafts for working with two axes simultaneously. Low backlash values and high efficiency, a wide range of offers in the range of gear ratios from 1 to 500 times.
The universal RediMount mounting system makes it easy and without unnecessary devices to connect electric motors. The housing of the unit is made of anodized aluminum, which gives low weight and reliable protection against corrosion factors. Gears made of HRC 55-60 hardness steel, resistant to wear.
Technical characteristics of Kollmorgen DuraTRUE planetary gearboxes
- Gear ratio: 1 - 500;
- Number of steps: 1;
- Nominal torque: 14 - 865 Nm;
- Effectiveness: 88 - 93 %;
- Backlash: 8-9 arc minutes.
Standard sizes of Kollmorgen DuraTRUE gearboxes
Type of gearbox | Max. moment, Nm | Ratio reductions |
coaxial | ||
DT60 | 41 - 52 | 3 - 100 |
DT90 | 51 - 95 | 3 - 100 |
DT115 | 284 | 3 - 100 |
DT142 | 284 | 3 - 100 |
angular with a solid shaft | ||
DTR60 | 14 - 27 | 5 - 500 |
DTR60S | 25 - 46 | 1 - 500 |
DTR90 | 144 - 167 | 5 - 500 |
DTR90S | 62 - 140 | 1 - 500 |
DTR115 | 284 | 5 - 500 |
DTR115S | 164 - 283 | 1 - 500 |
DTR142 | 798 - 833 | 5 - 500 |
DTR142S | 333 - 842 | 1 - 500 |
angular with hollow shaft | ||
DTR90H | 140 | 1 - 500 |
DTR115H | 283 | 1 - 500 |
DTR142H | 865 | 1 - 500 |
angular with double shaft | ||
DTR60D | 46 | 1 - 500 |
DTR90D | 140 | 1 - 500 |
DTR115D | 283 | 1 - 500 |
DTR142D | 865 | 1 - 500 |
You can buy Kollmorgen DuraTRUE planetary gearboxes, find out the price and more information about the product by contacting our specialists.
