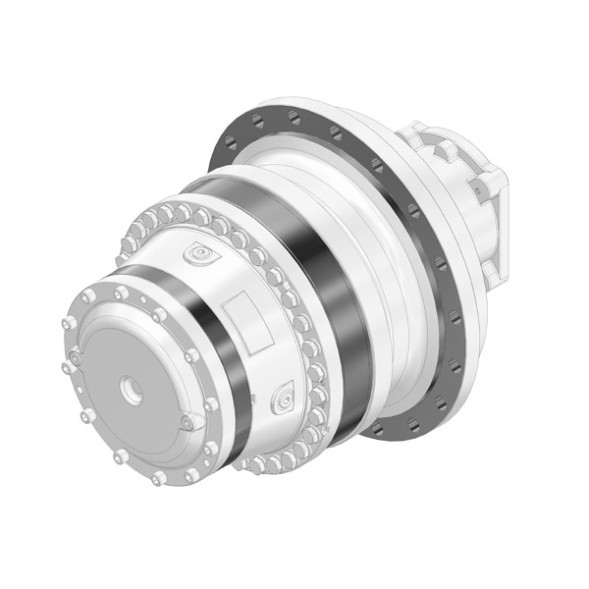

Company Reggiana Riduttori He has been engaged in development and production for several decades gearboxes for working with lifting devices different profiles. The W series of planetary gears is designed to be installed inside a lifting drum and connected to an electric or hydraulic motor directly or through connecting elements.
The series is characterized by compact design and ease of maintenance, and there are built-in negative brakes with a reverse function to ensure safe operation. Various design variations are available, including the use of bevel gears for angular positioning of the drive.
The most popular areas for the application of this line of gearboxes are port, offshore cranes, manipulators, drilling, processing and other machines.
Technical characteristics of gearboxes for the Reggiana Riduttori winch of the W series
- Torque (output): 39000 - 660000 Nm;
- Max. the moment (at the exit): 72000 - 1100000 Nm;
- Transmission ratio: 62 - 1180;
- Number of steps: 3, 4;
- Max. speed (at the entrance): 3500 rpm.
Parameters of standard sizes of Reggiana Riduttori W gearboxes
Type gearboxes | Ratio transfers | Nom. moment, Nm (class M5 L2-T5) | Max. moment, Nm |
RR3200 W3 | 65 - 189 | 39000 | 72000 |
RR5200 W3 | 70 - 176 | 61000 | 105000 |
RR6500 W3 | 62 - 185 | 78000 | 140000 |
RR10000 W3 | 64 - 147 | 116000 | 190000 |
RR15000 W3 | 64 - 147 | 169000 | 300000 |
RR20000 W4 | 258 - 1180 | 234000 | 400000 |
RR25000 W4 | 267 - 915 | 316000 | 600000 |
RR40000 W4 | 267 - 864 | 460000 | 800000 |
RR55000 W4 | 274 - 805 | 660000 | 1100000 |
You can buy gearboxes for Reggiana Riduttori winch, find out the price and more information about the product by contacting our specialists.
