Planetary gearboxes and gear motors from Red (EP catalog) currently comprise a large family of 24 standard sizes, including models designed specifically for heavy industry with torque values up to 3000000 Nm. Due to their flexibility and modular construction concept, they have unlimited possibilities for adaptation. The modern, improved design ensures high performance and meets the requirements of a wide variety of industries.
They are characterized by smooth running, efficient heat dissipation, minimal maintenance and long service life. The rigid body design, high reliability seals and reinforced support blocks provide high resistance to radial and axial loads. A wide range of accessories and additional modifications are available according to individual requirements.
The model range is divided into one-, two-, three- and four-stage gear configurations, with the axes positioned in one line or perpendicular in combination with bevel gears.

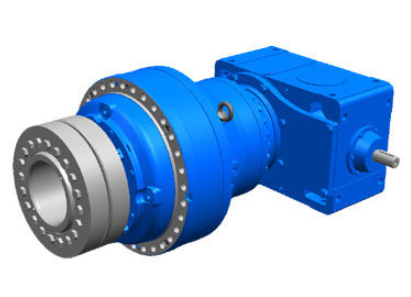

Technical characteristics of Rossi planetary gearboxes (EP catalog)
- Gear ratio: 3,55 - 3550;
- Nominal torque: 1600 - 90,000 Nm;
- Motor power: 0.18 - 90 kW;
- Number of steps: 1, 2, 3, 4 (linear), 2, 3, 4 (angular).
Standard sizes of Rossi planetary gearboxes (cat. EP)
Type of gearbox | Nom. moment, Nm | Max. moment, Nm |
001A | 1600 | 1900 |
002A | 2240 | 2650 |
003A | 3150 | 3750 |
004A | 4500 | 5300 |
006A | 6300 | 7500 |
009A | 9000 | 10600 |
012A | 12500 | 15000 |
015A | 15000 | 18000 |
018A | 18000 | 21200 |
021A | 21200 | 28000 |
030A | 31500 | 45000 |
042A | 45000 | 67000 |
060A | 63000 | 90000 |
085A | 90000 | 140000 |
data over (up to 3000 size) by the link |
Type of gearbox | Gear ratio |
linear | |
1EL | 3,55 - 7,1 |
2EL | 12,5 - 50 |
3EL | 50 - 250 |
4EL | 180 - 3550 |
corner | |
2EB | 9 - 31,5 |
3EB | 31,5 - 200 |
4EB | 160 - 2240 |
To buy Rossi planetary gearboxes and gear motors (EP catalog), you can find out the price and more information about the product by contacting our specialists.
