Company Red She has developed a line of planetary gearboxes specifically for operation as part of large-scale drive devices typical of heavy industry. As a continuation of the range of standard sizes of the EP family, they are powerful and high-performance transfer units with a multi-stage configuration. A wide range of gear ratios for optimal selection of technical parameters, the range of torque indicators reaches 3000000 Nm.
The modular concept of the gearbox architecture provides maximum flexibility for easy and simple integration into the drive system, and the versatile design is the ideal solution for all possible mounting options. A particularly durable cast-iron body, reinforced support units, shock-absorbing construction design, all this ensures reliable operation under extremely high mechanical loads. As compact and safe as possible, they are easy to maintain and easily fit into any production niche.

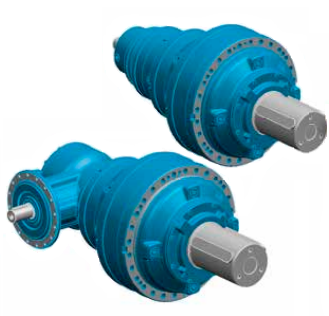

The model range is presented in two variants of orientation of the input and output axes: linear and angular gears.
Technical characteristics of Rossi planetary gearboxes for heavy industry
- Gear ratio: 10 - 1800;
- Nominal torque: 125,000 - 3000000 Nm;
- Number of steps: 1, 2, 3, 4 (linear), 2, 3, 4 (angular).
Standard sizes of Rossi planetary gearboxes for heavy industry
Type of gearbox | Nom. moment, Nm | Coefficients reductions |
125 | 125000 | 10 - 1800 |
180 | 180000 | 18 - 1400 |
250 | 265000 | 18 - 1250 |
355 | 375000 | 45 - 1400 |
500 | 530000 | 71 - 1250 |
710 | 710000 | 71 - 1000 |
1060 | 1060000 | 71 - 1000 |
1500 | 1500000 | 71 - 1000 |
2120 | 2120000 | 71 - 1000 |
3000 | 3000000 | 71 - 1000 |
To buy Rossi planetary gearboxes and gear motors for heavy industry, you can find out the price and more information about the product by contacting our specialists.
