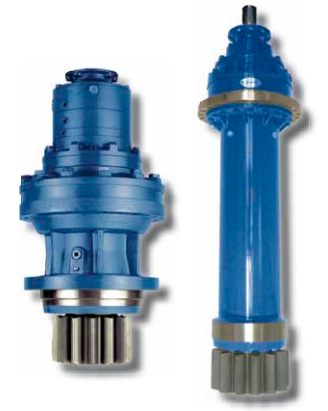

Rossi EPS Planetary Gearboxes

Rossi presents a wide range of planetary gearboxes for rotary operations. They cover a wide range of performance characteristics and are available in thirteen dimensions in a three- or four-speed gear configuration. Such a variety of technical parameters provides an ideal drive configuration for applications such as crane equipment (tower, ship, grab, gantry, gantry and other cranes), construction machinery, elevator installations, stackers and regenerators, wind turbines, etc.

The gearbox frame is made of particularly durable cast iron with spherical graphite, needle roller bearings are installed to obtain the most compact design for working conditions with high radial loads. The profile and dimensions of the output gear are determined by the required specifications.

High-quality design and high-tech engineering solutions make it possible to use these mechanical transmissions in conditions of extreme loads of various nature of action, while they are easy to install and completely maintenance-free.

Technical characteristics of Rossi rotary gearboxes (EPS catalog)

• Gear ratio: 50 - 1000;
• Nominal torque: 1500 - 125000 Nm;
• Speed (at the entrance): 900 - 2800 rpm;
• Speed (output): 0.9 - 56 rpm;
• Number of steps: 3, 4.

Standard sizes of Rossi planetary rotation gearboxes (cat. EPS)

You can buy Rossi rotary gearboxes (EPS catalog), find out the price and more information about the product by contacting our specialists.
