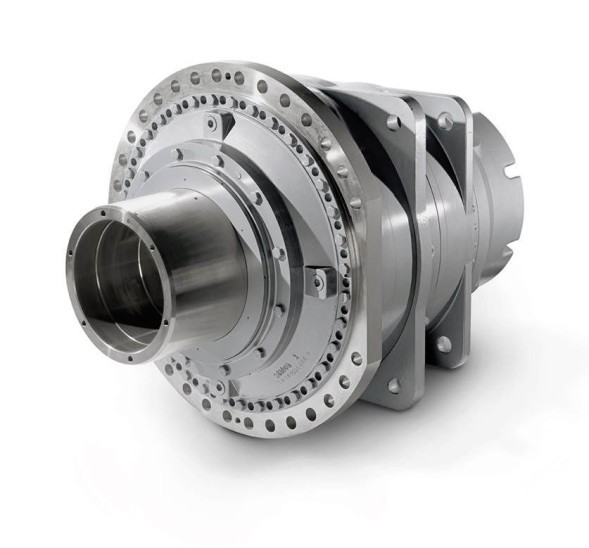

Series PLANUREX 2 planetary gearboxes from Siemens It has gained incredible popularity due to its reliability and efficiency even in the most difficult conditions, it is a legendary quality standard that has become a new benchmark for global production. The range of models in this group includes many different configurations and design solutions to ensure maximum compliance with a given application.
The gearboxes have a robust design based on the principle of modular planning for easy and fast combination of drive components with other types of transmission devices. The body is made of cast iron with spherical graphite, the rest of the parts are made of gray cast iron, the gears are hardened and carefully ground, radial seals and reinforced bearings to increase rigidity, low noise level. They are easy to maintain and do not require unnecessary costs. The most typical application is in the drives of roller presses, agitators, mills, rotary kilns, steel belt conveyors, rotary excavators, etc.
Design variants of PLANUREX 2 gearboxes
- 13 types of design options;
- 27 standard sizes to choose from;
- Types of gears: standard coaxial, cylindrical, conical or conical-cylindrical stages;
- Shaft: hollow shaft for shrink washer or connection via involute slots /solid shaft with key or involute slots;
- Motorized PLANUREX-MOTOX combination.
- Combinations with PLANUREX-Hydraulic Motor hydraulic drive.
- Combinations with the PLANUREX-CAVEX worm gear.
- Specialized combinations are available for specific industry applications (for bucket excavator drive, with primary worm gear loop, type P3KA and other specialized offers).
Technical characteristics of PLANUREX 2 planetary gearboxes and gear motors
- Rated torque: from 22,000 to 2,600,000 Nm;
- Transmission ratio: from 25 to 4000;
- Number of gears: 2, 3;
- Overall size: 9, 10, 11, 12, 13, 14, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36;
- Housing protection: IP 54.
To buy planetary gearboxes and gear motors of the Siemens PLANUREX 2 series, you can find out the price and more information about the product by contacting our specialists.
