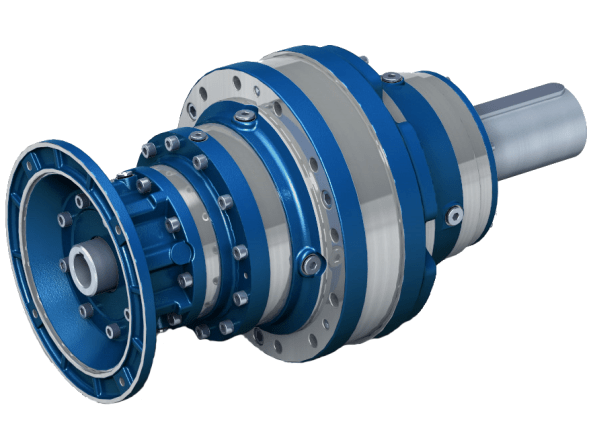

Industrial Planetary Gearboxes series EX from the company STM These are high-tech and powerful mechanical transmissions designed to perform a wide range of industrial operations, including those with constant loads (heavy duty) and under various operating conditions. The model range consisting of more than forty overall dimensions is represented by one-, two-, three- and four-stage versions, which gives the consumer a huge selection of available operating parameters, and versions with more reduction levels are also available on request.
The body and flanges are made of high-strength cast iron, the compact design perfectly combines with the high performance of this series, and the mounting system has comprehensive suggestions for creating a final product that meets any installation requirements. Jet rods (single or double) and cooling systems are also available for additional equipment.
Technical characteristics of STM EX series planetary gearboxes
- The torque: 400 - 875836 Nm;
- Transmission ratio: 3,48 - 2948,38;
- Input speed range: 500 - 1400 rpm;
- Output speed range: 0.47 - 402.3 rpm;
- Number of gears: 1, 2, 3, 4 (5, 6 on request);
- Mounting design: IM B5;
- Operating temperature range: -20 ... 110 °C.
Parameters of standard sizes of STM series EX gearboxes
Type gearboxes | Ratio transfers | Moment, Nm | Power, kW | Speed, rpm |
single-stage | ||||
EX-101 | 3,48 - 7,20 | 400 - 548 | 8,4 - 21,45 | 194,44 - 402,3 |
EX-201 | 3,48 - 7,20 | 750 - 1004 | 15,74 - 39,30 | 194,44 - 402,3 |
EX-251 | 3,48 - 5,77 | 1207 - 1339 | 35,07 - 52,42 | 242,63 - 402,30 |
EX-301 | 3,60 - 7,50 | 1306 - 1716 | 26,32 - 64,69 | 186,67 - 388,89 |
EX-351 | 3,60 - 6,20 | 2091 - 2211 | 50,97 - 86,27 | 225,81 - 388,89 |
EX-501 | 3,60 - 7,50 | 2394 - 2911 | 48,24 - 113,60 | 186,67 - 388,89 |
EX-701 | 3,60 - 5,33 | 3608 - 3881 | 27,06 - 151,47 | 262,66 - 388,89 |
EX-801 | 3,50 - 7,25 | 3265 - 3705 | 77,23 - 140,98 | 193,10 - 400,00 |
EX-1001 | 3,50 - 7,25 | 4476 - 5201 | 108,42 - 193,27 | 193,10 - 400,00 |
EX-1501 | 3,72 - 6,23 | 7544 - 8354 | 202,66 - 306,48 | 224,72 - 376,34 |
EX-2001 | 4,40 - 5,25 | 10448 - 10842 | 312,11 - 358,86 | 266,67 - 318,18 |
EX-2501 | 3,63 - 6,25 | 11243 - 12601 | 304,70 - 468,08 | 224,00 - 385,67 |
EX-3001 | 3,52 - 5,85 | 14853 - 16455 | 425,11 - 637,72 | 239,32 - 397,73 |
EX-3501 | 4,04 - 7,36 | 15739 - 17926 | 368,10 - 588,77 | 190,22 - 346,53 |
EX-4201 | 4,18 - 6,00 | 21201 - 22706 | 571,92 - 766,54 | 233,33 - 334,93 |
EX-6501 | 4,18 - 6,00 | 29936 - 32339 | 581,52 - 773,10 | 166,67 - 239,23 |
EX-8501 | 4,18 - 6,00 | 36094 - 38699 | 696,28 - 932,13 | 166,67 - 239,23 |
EX-10001 | 4,04 - 7,36 | 54324 - 59084 | 67,93 - 123,76 | 67,93 - 123,76 |
EX-12001 | 4,18 - 6,00 | 73107 - 78779 | 708,66 - 944,03 | 83,33 - 119,62 |
EX-16001 | 4,04 - 7,36 | 75753 - 94433 | 555,50 - 1167,22 | 67,93 - 123,76 |
EX-20001 | 4,18 - 6,00 | 116690 - 121569 | 1093,58 - 1506,82 | 83,33 - 119,62 |
EX-26001 | 4,04 - 7,36 | 133191 - 157664 | 976,70 - 1949,61 | 67,93 - 123,76 |
EX-31001 | 4,18 - 6,00 | 194908 - 210219 | 1891,03 - 2516,86 | 83,33 - 119,62 |
EX-37001 | 4,17 - 6,21 | 202358 - 220714 | 1918,49 - 2619,17 | 80,52 - 119,90 |
EX-45001 | 4,17 - 5,87 | 269811 - 289431 | 2661,38 - 3492,24 | 85,18 - 119,90 |
EX-55001 | 4,17 - 6,21 | 332936 - 351509 | 3055,38 - 4309,28 | 80,52 - 119,90 |
EX-68001 | 4,17 - 5,87 | 437751 - 456079 | 4025,22 - 5745,71 | 85,18 - 119,90 |
EX-80001 | 3,70 | 438699 | 135,14 | 6399,93 |
two-stage | ||||
EX-102 | 12,11 - 51,84 | 450 - 872 | 1,35 - 9,25 | 27,01 - 115,61 |
EX-202 | 12,11 - 51,84 | 843 - 1681 | 2,54 - 16,95 | 27,01 - 115,61 |
EX-252 | 12,11 - 41,54 | 1472 - 2031 | 5,53 - 21,82 | 33,70 - 115,61 |
EX-302 | 12,53 - 54,00 | 1459 - 2464 | 4,21 - 21,82 | 25,93 - 111,73 |
EX-352 | 12,53 - 44,64 | 2102 - 2880 | 7,98 - 21,82 | 31,36 - 111,73 |
EX-402 | 12,53 - 54,00 | 1753 - 3349 | 7,73 - 21,82 | 25,93 - 111,73 |
EX-502 | 12,53 - 54,00 | 2675 - 4776 | 7,73 - 39,94 | 25,93 - 111,73 |
EX-702 | 12,53 - 30,77 | 4279 - 5864 | 27,06 - 53,26 | 45,50 - 111,73 |
EX-802 | 12,60 - 54,38 | 4141 - 6476 | 11,87 - 59,35 | 25,74 - 111,11 |
EX-902 | 12,60 - 54,38 | 5314 - 8384 | 16,83 - 65,77 | 25,74 - 111,11 |
EX-952 | 12,60 - 44,95 | 5759 - 7706 | 19,98 - 81,36 | 31,15 - 111,11 |
EX-1002 | 12,60 - 54,38 | 5868 - 8877 | 16,83 - 81,36 | 25,74 - 111,11 |
EX-1502 | 13,39 - 46,73 | 9915 - 14057 | 37,42 - 115,49 | 29,96 - 104,56 |
EX-1802 | 15,84 - 39,38 | 11728 - 15583 | 49,03 - 115,46 | 35,55 - 88,38 |
EX-2002 | 15,28 - 28,00 | 15344 - 16824 | 89,12 - 151,06 | 50,00 - 88,38 |
EX-2502 | 12,69 - 45,31 | 11659 - 18977 | 65,22 - 142,30 | 30,90 - 110,32 |
EX-2802 | 12,69 - 45,31 | 15981 - 22024 | 65,22 - 196,39 | 30,90 - 110,32 |
EX-3002 | 12,32 - 42,38 | 14853 - 23953 | 88,13 - 637,72 | 33,03 - 113,64 |
EX-3502 | 14,15 - 53,39 | 17825 - 30294 | 64,83 - 196,46 | 26,22 - 98,94 |
EX-3602 | 15,04 - 45,88 | 21882 - 29482 | 74,37 - 242,11 | 30,51 - 93,09 |
EX-4202 | 15,56 - 37,38 | 31076 - 37716 | 140,85 - 311,45 | 37,45 - 89,97 |
EX-6002 | 15,56 - 37,38 | 31076 - 48387 | 201,86 - 311,45 | 37,45 - 89,97 |
EX-6502 | 15,16 - 37,50 | 39830 - 48535 | 201,27 - 409,75 | 37,33 - 92,35 |
EX-8002 | 15,16 - 37,50 | 46293 - 60444 | 251,35 - 476,23 | 37,33 - 92,35 |
EX-8502 | 14,72 - 35,08 | 47601 - 59420 | 264,17 - 504,33 | 39,91 - 95,11 |
EX-10002 | 14,23 - 43,05 | 57830 - 73688 | 209,49 - 642,22 | 32,52 - 98,38 |
EX-12002 | 16,91 - 44,18 | 64849 - 94573 | 333,86 - 598,07 | 31,69 - 82,79 |
EX-15002 | 16,35 - 54,22 | 62703 - 105956 | 236,47 - 598,20 | 25,82 - 85,63 |
EX-16002 | 16,91 - 44,18 | 80724 - 114464 | 284,97 - 778,86 | 31,69 - 82,79 |
FROM-20002 | 17,49 - 36,00 | 123329 - 155724 | 411,80 - 785,56 | 27,78 - 57,18 |
EX-26002 | 16,91 - 44,18 | 143777 - 196987 | 368,19 - 947,20 | 22,63 - 59,14 |
EX-31002 | 16,91 - 44,18 | 225386 - 284512 | 316,21 - 742,42 | 11,32 - 29,57 |
EX-32002 | 17,49 - 36,00 | 245886 - 324493 | 380,46 - 953,66 | 13,89 - 28,59 |
EX-37002 | 17,45 - 37,29 | 288756 - 354934 | 431,35 - 959,30 | 13,41 - 28,65 |
EX-45002 | 16,88 - 43,20 | 359302 - 421655 | 479,01 - 1185,53 | 11,57 - 29,62 |
EX-55002 | 17,45 - 37,29 | 407449 - 539285 | 608,65 - 1531,19 | 13,41 - 28,65 |
EX-68002 | 16,88 - 43,20 | 516335 - 628654 | 665,48 - 1980,20 | 11,57 - 29,62 |
EX-75002 | 14,98 - 22,22 | 532551 - 575166 | 1441,60 - 1980,23 | 22,50 - 33,38 |
EX-80002 | 15,49 - 22,22 | 674095 - 751154 | 1882,70 - 2423,95 | 22,50 - 32,28 |
three-stage | ||||
EX-103 | 42,14 - 373,25 | 555 - 1159 | 0,24 - 3,38 | 3,75 - 33,22 |
EX-203 | 42,14 - 373,25 | 1039 - 2127 | 0,44 - 6,60 | 3,75 - 33,22 |
EX-253 | 42,14 - 299,08 | 1768 - 2483 | 0,96 - 7,99 | 4,68 - 33,22 |
EX-303 | 43,60 - 388,80 | 1794 - 3270 | 0,74 - 9,31 | 3,60 - 32,11 |
EX-353 | 43,60 - 321,41 | 2363 - 3785 | 1,36 - 9,31 | 4,36 - 32,11 |
EX-403 | 43,60 - 388,80 | 2363 - 4898 | 1,35 - 9,31 | 3,60 - 32,11 |
EX-503 | 43,60 - 388,80 | 3289 - 6193 | 1,35 - 17,05 | 3,60 - 32,11 |
EX-703 | 43,60 - 221,54 | 6007 - 7203 | 4,36 - 21,95 | 6,32 - 32,11 |
EX-803 | 43,85 - 391,50 | 5086 - 8884 | 2,07 - 21,96 | 3,58 - 31,93 |
EX-903 | 43,85 - 391,50 | 6042 - 10205 | 2,94 - 21,96 | 3,58 - 31,93 |
EX-953 | 43,85 - 323,64 | 6042 - 11702 | 3,48 - 21,96 | 4,33 - 31,93 |
EX-1003 | 43,85 - 391,50 | 7206 - 12806 | 2,94 - 34,72 | 3,58 - 31,93 |
EX-1503 | 46,60 - 336,46 | 11758 - 19246 | 6,49 - 40,20 | 4,16 - 30,04 |
EX-1803 | 55,12 - 283,50 | 13833 - 20700 | 7,78 - 40,21 | 4,94 - 25,40 |
EX-2003 | 55,12 - 161,54 | 18543 - 22357 | 18,74 - 53,61 | 8,67 - 25,40 |
EX-2503 | 50,40 - 339,84 | 18892 - 28963 | 10,90 - 59,73 | 4,12 - 27,78 |
EX-2803 | 45,68 - 339,84 | 23235 - 31458 | 10,90 - 81,87 | 4,12 - 30,65 |
EX-3003 | 44,35 - 317,88 | 22788 - 34974 | 14,69 - 81,88 | 4,40 - 31,57 |
EX-3503 | 50,95 - 400,40 | 26178 - 41547 | 10,85 - 81,88 | 3,50 - 27,48 |
EX-3603 | 54,15 - 344,11 | 26810 - 44065 | 12,42 - 100,88 | 4,07 - 25,85 |
EX-4203 | 56,00 - 280,38 | 40842 - 54292 | 23,42 - 116,21 | 4,99 - 25,00 |
EX-6003 | 56,00 - 280,38 | 40842 - 67689 | 33,52 - 116,21 | 4,99 - 25,00 |
EX-6503 | 53,06 - 271,88 | 48022 - 74914 | 34,48 - 144,24 | 5,15 - 26,39 |
EX-8003 | 53,06 - 271,88 | 65826 - 85710 | 43,00 - 197,72 | 5,15 - 26,39 |
EX-8503 | 51,52 - 254,31 | 63919 - 93126 | 45,69 - 197,66 | 5,51 - 27,17 |
EX-10003 | 49,82 - 312,10 | 61806 - 104078 | 35,88 - 197,67 | 4,49 - 28,10 |
EX-12003 | 59,18 - 320,32 | 73424 - 128868 | 57,10 - 197,72 | 4,37 - 23,66 |
EX-15003 | 57,22 - 393,12 | 70994 - 146947 | 40,50 - 197,73 | 3,56 - 24,47 |
EX-16003 | 62,90 - 275,29 | 96323 - 150220 | 55,80 - 313,56 | 5,09 - 22,26 |
EX-20003 | 63,39 - 225,00 | 153658 - 199914 | 108,78 - 412,48 | 6,22 - 22,09 |
EX-25003 | 61,30 - 276,14 | 168906 - 249652 | 97,47 - 479,30 | 5,07 - 22,84 |
EX-26003 | 59,52 - 258,29 | 167755 - 247998 | 103,49 - 507,52 | 5,42 - 23,52 |
EX-30003 | 61,30 - 276,14 | 184376 - 306748 | 156,76 - 479,40 | 5,07 - 22,84 |
EX-31003 | 59,52 - 258,29 | 241399 - 303890 | 166,44 - 646,22 | 5,42 - 23,52 |
EX-32003 | 70,71 - 265,09 | 267113 - 333677 | 162,57 - 601,96 | 5,28 - 19,80 |
EX-37003 | 70,58 - 274,56 | 266612 - 377526 | 180,64 - 602,05 | 5,10 - 19,84 |
EX-45003 | 70,58 - 259,20 | 347209 - 458691 | 240,88 - 784,05 | 5,40 - 19,84 |
EX-55003 | 72,99 - 223,71 | 453611 - 559002 | 230,78 - 790,60 | 4,47 - 13,70 |
EX-68003 | 70,58 - 259,20 | 575484 - 665735 | 252,83 - 953,34 | 3,86 - 14,17 |
EX-75003 | 62,63 - 133,33 | 645761 - 842758 | 326,83 - 586,52 | 3,75 - 7,98 |
EX-80003 | 62,63 - 163,64 | 822243 - 851072 | 296,41 - 746,81 | 3,06 - 7,98 |
four-stage | ||||
EX-104 | 269,63 - 2687,39 | 697 - 1242 | 0,04 - 0,70 | 0,52 - 5,19 |
EX-204 | 220,10 - 2687,39 | 1306 - 2329 | 0,08 - 1,63 | 0,52 - 6,36 |
EX-254 | 220,10 - 2153,35 | 2180 - 2691 | 0,17 - 1,90 | 0,65 - 6,36 |
EX-304 | 151,72 - 2799,36 | 2253 - 3272 | 0,13 - 3,45 | 0,50 - 9,23 |
EX-354 | 151,72 - 2314,14 | 3345 - 3930 | 0,24 - 3,45 | 0,60 - 9,23 |
EX-404 | 219,42 - 2799,36 | 3997 - 5577 | 0,24 - 3,39 | 0,50 - 6,38 |
EX-504 | 151,72 - 2799,36 | 4131 - 6489 | 0,24 - 6,72 | 0,50 - 9,23 |
EX-704 | 151,72 - 1595,08 | 6057 - 7807 | 0,81 - 8,14 | 0,88 - 9,23 |
EX-804 | 212,31 - 2818,80 | 6395 - 9633 | 0,38 - 6,92 | 0,50 - 6,59 |
EX-904 | 179,84 - 2818,80 | 9060 - 12688 | 0,53 - 9,47 | 0,50 - 7,78 |
EX-954 | 179,84 - 2330,21 | 8612 - 12807 | 0,62 - 9,47 | 0,60 - 7,78 |
EX-1004 | 212,31 - 2818,80 | 9060 - 13831 | 0,53 - 9,93 | 0,50 - 6,59 |
EX-1504 | 178,35 - 2422,52 | 17240 - 23253 | 1,18 - 17,36 | 0,58 - 7,85 |
EX-1804 | 191,83 - 2041,20 | 17010 - 25403 | 1,38 - 17,36 | 0,69 - 7,30 |
EX-2004 | 191,83 - 1163,08 | 23178 - 26251 | 3,31 - 19,91 | 1,20 - 7,30 |
EX-2504 | 175,39 - 2446,88 | 23804 - 34117 | 1,96 - 22,35 | 0,57 - 7,98 |
EX-2804 | 175,39 - 2446,88 | 29190 - 34864 | 1,96 - 29,43 | 0,57 - 7,98 |
EX-3004 | 175,39 - 2288,77 | 35465 - 38026 | 2,62 - 35,34 | 0,61 - 7,98 |
EX-3504 | 177,30 - 2882,86 | 34207 - 46499 | 1,97 - 35,37 | 0,49 - 7,90 |
EX-3604 | 222,47 - 2477,58 | 42802 - 46700 | 3,04 - 32,41 | 0,57 - 6,29 |
EX-4204 | 214,32 - 2018,77 | 50895 - 54679 | 4,13 - 40,92 | 0,69 - 6,53 |
EX-6004 | 194,89 - 2018,77 | 48434 - 76892 | 5,82 - 40,91 | 0,69 - 7,18 |
EX-6504 | 210,76 - 2039,06 | 71737 - 80233 | 5,82 - 58,18 | 0,69 - 6,64 |
EX-8004 | 191,00 - 2039,06 | 88496 - 96554 | 7,18 - 80,31 | 0,69 - 7,33 |
EX-8504 | 185,47 - 1907,31 | 87822 - 99999 | 7,54 - 82,72 | 0,73 - 7,55 |
EX-10004 | 179,34 - 2340,79 | 87594 - 129247 | 6,18 - 83,40 | 0,60 - 7,81 |
EX-12004 | 213,05 - 2402,39 | 107827 - 149497 | 9,23 - 83,35 | 0,58 - 6,57 |
EX-15004 | 206,01 - 2948,38 | 104261 - 171175 | 6,96 - 83,41 | 0,47 - 6,80 |
EX-16004 | 226,45 - 2064,65 | 119410 - 184481 | 9,55 - 118,28 | 0,68 - 6,18 |
EX-20004 | 221,87 - 1631,25 | 180222 - 211910 | 18,24 - 146,85 | 0,86 - 6,31 |
EX-20004 | 214,53 - 2001,99 | 208204 - 292191 | 17,15 - 201,42 | 0,70 - 6,53 |
EX-26004 | 208,32 - 1872,63 | 206172 - 290091 | 18,19 - 201,28 | 0,75 - 6,72 |
EX-30004 | 214,53 - 2001,99 | 262169 - 333698 | 25,80 - 201,42 | 0,70 - 6,53 |
EX-31004 | 208,32 - 1872,63 | 254577 - 334686 | 27,43 - 201,28 | 0,75 - 6,72 |
EX-32004 | 247,49 - 1921,91 | 302442 - 335682 | 26,78 - 201,40 | 0,73 - 5,66 |
EX-37004 | 247,02 - 1990,55 | 301870 - 407800 | 29,45 - 201,38 | 0,70 - 5,67 |
EX-45004 | 262,55 - 1615,02 | 437630 - 461361 | 44,80 - 284,29 | 0,87 - 5,33 |
EX-55004 | 264,60 - 1398,21 | 521767 - 559055 | 61,39 - 347,93 | 1,00 - 5,29 |
EX-68004 | 248,43 - 1515,32 | 648025 - 676624 | 70,14 - 441,91 | 0,92 - 5,64 |
EX-75004 | 220,44 - 779,49 | 691635 - 851085 | 174,23 - 516,72 | 1,80 - 6,35 |
EX-80004 | 220,44 - 956,64 | 851028 - 875836 | 150,45 - 635,81 | 1,46 - 6,35 |
You can buy STM EX series planetary gearboxes, find out the price and more information about the product by contacting our specialists.
