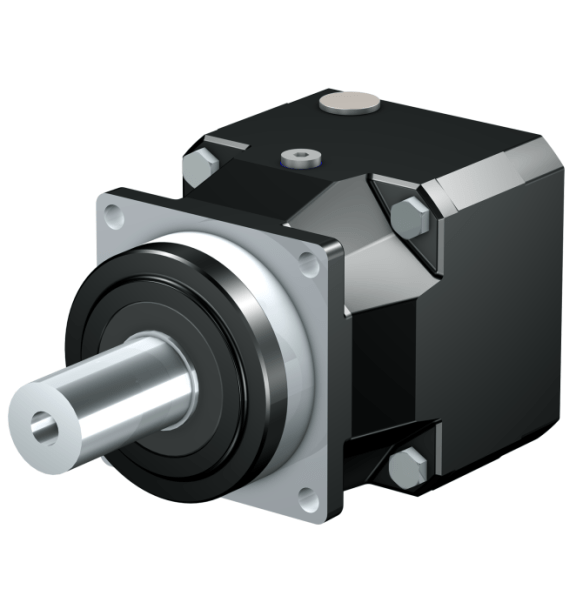

Planetary gearboxes rulers P Stober Antriebstechnik offers a wide range of standard sizes and gear ratios, one- and two-stage configurations, backlash of less than 3 angular minutes, a high degree of resistance to torsion loads. The block design has a solid or keyed shaft at the output, any mounting positions are available. Bearing assemblies can be additionally reinforced with versions for increased axial and radial loads. Gearbox lubrication does not require replacement and lasts for the entire service life.
The used universal motor adapters ME or MEL (option for large-sized ones) allow you to connect gearboxes of this series to almost any type of synchronous servo motors. These docking units can additionally be equipped with a brake block (ServoStop) and a ventilation system (ServoCool). The ready-made solution from Stober Antriebstechnik can be found on the product page "Planetary servo gear motors of the P series".
Technical characteristics of Stober Antriebstechnik P series planetary gearboxes
- Gear ratio: 3 - 100;
- The maximum allowable moment: 18 - 3000 Nm;
- Number of steps: 1, 2;
- The degree of protection of the case: IP65;
- Operating temperature range: 0 ... + 40 °C.
Standard sizes of Stober Antriebstechnik series servo reducers
Type of gearbox | Gear ratio | Moment, Nm |
P221 | 4 - 10 | 18 - 22 |
P222 | 16 - 100 | 18 - 22 |
P321 | 3 - 10 | 50 - 65 |
P322 | 12 - 100 | 50 - 65 |
P421 | 3 - 10 | 100 - 120 |
P422 | 12 - 100 | 100 - 120 |
P521 | 3 - 10 | 200 - 300 |
P522 | 12 - 100 | 200 - 300 |
P721 | 3 - 10 | 431 - 700 |
P722 | 12 - 100 | 500 - 700 |
P821 | 3 - 10 | 964 - 1600 |
P822 | 12 - 100 | 1200 - 1600 |
P921 | 4 - 10 | 2000 - 3000 |
P922 | 16 - 100 | 2000 - 3000 |
You can buy Stober Antriebstechnik P series planetary servo reducers, find out the price and more information about the product by contacting our specialists.
