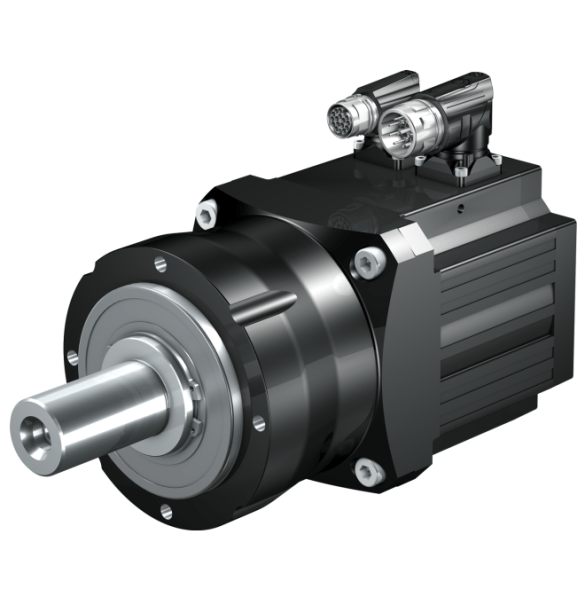

Stober Antriebstechnik PE planetary gearboxes

Planetary coaxial gear motors rulers On Stober Antriebstechnik offers a wide range of standard sizes and gear ratios, is a budget version of the P series and is suitable for less demanding applications. High performance of process dynamics, torque and power in an ultra compact design. Robust design resistant to torsion loads, solid or keyed shaft at the outlet, any mounting positions are available.

The model range is divided into five dimensions, the case is protected from dust and moisture. Various feedback sensor options are available to control the operation of the engine. Gearbox lubrication does not require replacement and lasts for the entire service life. Optionally, retrofitting with a brake block is possible.

For more information about the servo motor series included in these gear motors, see the page "Stober Antriebstechnik synchronous servo motors of the EZ series"

Technical characteristics of Stober Antriebstechnik PE series synchronous servo gear motors

• Gear ratio: 3 - 28;
• The maximum allowable moment: 11 - 310 Nm;
• Rated input speed: 2000 - 6000 rpm;
• Rated output speed: 107 - 2000 rpm;
• Number of steps: 1, 2;
• Overall height: 72, 98, 115, 145, 190 mm;
• The degree of protection of the case: gearbox IP64, motor IP56 (IP66 on request);
• Cooling system (motor): IC 410;
• Operating temperature range: 0 ... + 40 °C;
• Insulation class: F.

Standard sizes of Stober Antriebstechnik PE series synchronous servo gear motors

You can buy Stober Antriebstechnik PE series synchronous servo gear motors, find out the price and more information about the product by contacting our specialists.
