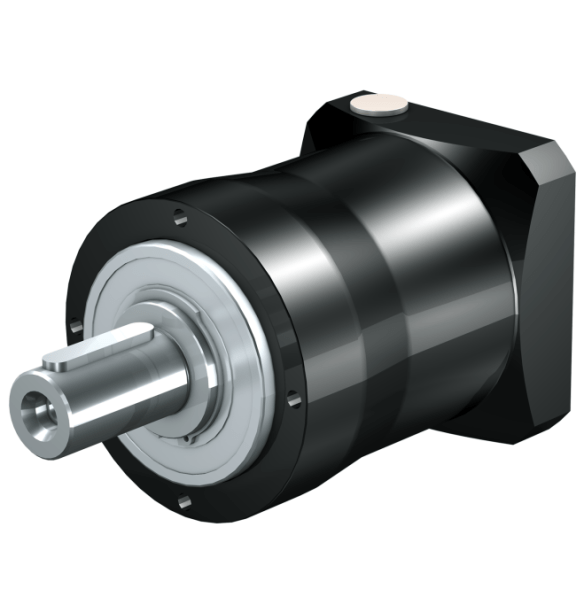

Planetary gearboxes rulers On Stober Antriebstechnik offers a wide range of standard sizes and gear ratios, is a budget version of the P series and serves for less demanding applications, single- and two-stage configurations. The block design has a solid or keyed shaft at the output, any mounting positions are available. Gearbox lubrication does not require replacement and lasts for the entire service life.
The used universal motor adapters ME, shortened MEI (for simple mounts) or MEL (option for large-sized ones) allow you to connect gearboxes of this series to almost any type of synchronous servo motors. The ready-made solution from Stober Antriebstechnik can be found on the product page "Planetary servo gear motors of the PE series".
Technical characteristics of Stober Antriebstechnik PE series planetary gearboxes
- Gear ratio: 3 - 100;
- The maximum allowable moment: 13 - 310 Nm;
- Number of steps: 1, 2;
- The degree of protection of the case: IP65;
- Operating temperature range: 0 ... + 40 °C.
Standard sizes of Stober Antriebstechnik PE series servo reducers
Type of gearbox | Gear ratio | Moment, Nm |
PE211 | 4 - 10 | 13 - 15 |
PE212 | 16 - 100 | 13 - 15 |
PE311 | 3 - 10 | 37 - 42 |
PE312 | 12 - 100 | 37 - 55 |
PE411 | 3 - 10 | 90 - 100 |
PE412 | 12 - 100 | 90 - 120 |
PE511 | 3 - 10 | 180 - 250 |
PE512 | 12 - 100 | 220 - 310 |
You can buy Stober Antriebstechnik PE series planetary servo reducers, find out the price and more information about the product by contacting our specialists.
