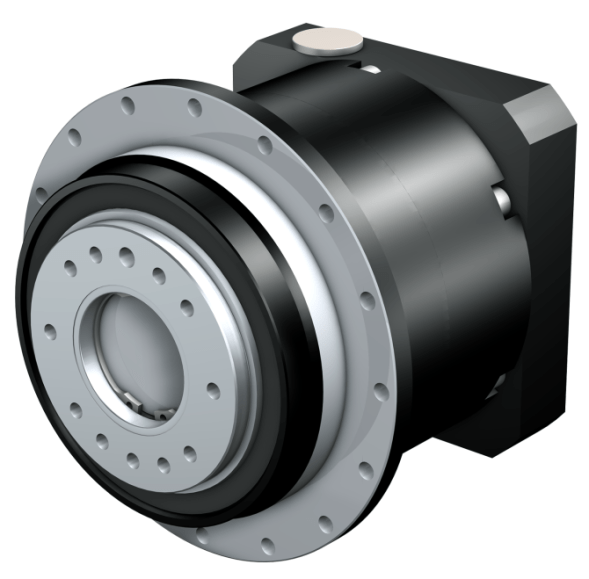

Planetary gearboxes rulers PHV Stober Antriebstechnik offers gear ratios of over 60, three-stage, backlash of less than 3 angular minutes, maximum rigidity and a high degree of load resistance. The block design has a flange shaft at the outlet, any mounting positions are available. Precision bearings with angular contact are installed. Gearbox lubrication does not require replacement and lasts for the entire service life.
The used universal motor adapters ME or MEL (option for large-sized ones) allow you to connect gearboxes of this series to almost any type of synchronous servo motors. These docking units can additionally be equipped with a brake block (ServoStop) and a ventilation system (ServoCool). The ready-made solution from Stober Antriebstechnik can be found on the product page "Planetary servo gear motors of the PHV series".
Technical characteristics of Stober Antriebstechnik PHV series planetary gearboxes
- Gear ratio: 61 - 121;
- The maximum allowable moment: 4250 - 7500 Nm;
- Number of steps: 3;
- The degree of protection of the case: IP65;
- Operating temperature range: 0 ... + 40 °C.
Standard sizes of Stober Antriebstechnik PHV series servo reducers
Type of gearbox | Gear ratio | Moment, Nm |
PHV933 | 61 - 121 | 4250 |
PHV1033 | 61 - 91 | 7500 |
You can buy Stober Antriebstechnik PHV series planetary servo reducers, find out the price and more information about the product by contacting our specialists.
