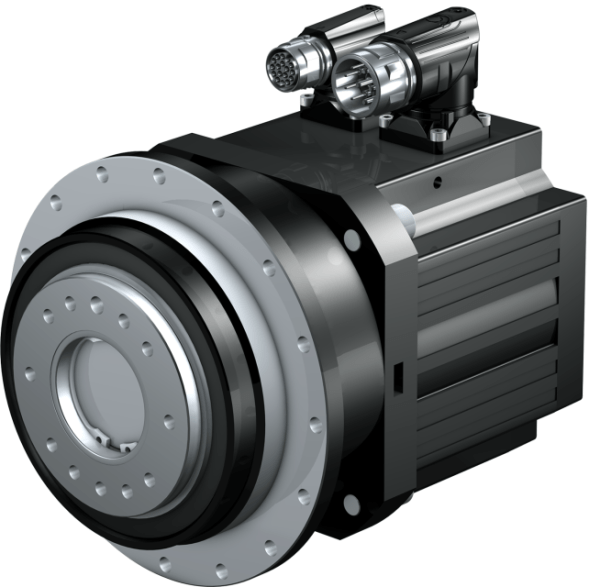

Stober Antriebstechnik PHVA planetary gearboxes

Planetary coaxial gear motors rulers PHVA Stober Antriebstechnik offers models with a gear ratio of over 60 to perform production tasks with high precision requirements. Excellent performance, the highest torque values in the line, excellent dynamics and power in an ultra compact design, backlash less than 1 arc minute. Heavy-duty design for resistance to torsion loads, flanged shaft at the outlet, precision bearings with angular contact are installed, any mounting positions are available.

The model range has two dimensions, the case is protected from dust and moisture. Various feedback sensor options are available to control the operation of the engine. Gearbox lubrication does not require replacement and lasts for the entire service life. Optionally, retrofitting with a brake block is possible.

For more information about the servo motor series included in these gear motors, see the page "Stober Antriebstechnik synchronous servo motors of the EZ series"

Technical characteristics of Stober Antriebstechnik series synchronous servo gear motors PHVA

• Gear ratio: 61 - 121;
• The maximum allowable moment: 1638 - 7500 Nm;
• Rated input speed: 2000 - 4500 rpm;
• Rated output speed: 22 - 74 rpm;
• Number of steps: 3;
• Overall height: 145, 190 mm;
• The degree of protection of the case: gearbox IP65, motor IP56 (IP66 on request);
• Cooling system (motor): IC 410;
• Operating temperature range: 0 ... + 40 °C;
• Insulation class: F.

Standard sizes of Stober Antriebstechnik synchronous servo gear motors of the PHVA series

Buy Stober Antriebstechnik synchronous servo gear motors of the PHVA series, you can find out the price and more information about the product by contacting our specialists.
