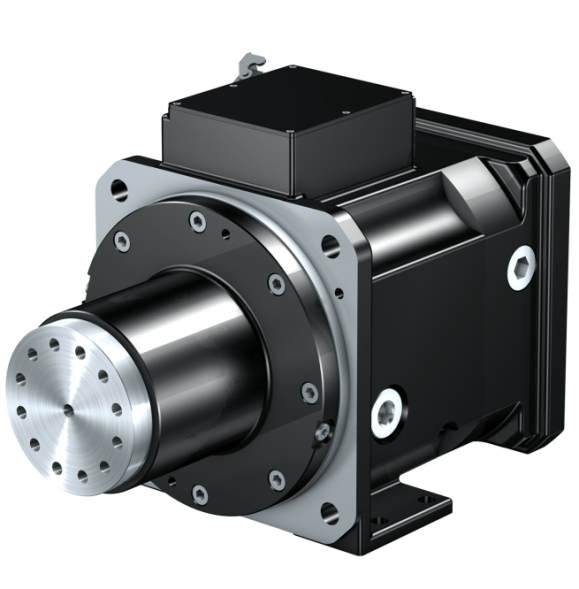

Two-speed planetary gearboxes rulers PS Stober Antriebstechnik has two gear ratio stages, which allow you to use two speed modes alternately with minimal losses. High-precision operation, easy installation, high power density and exceptionally smooth running.
At the outlet there is a flanged shaft or a solid shaft with two dowels and without, various design designs are available depending on the distance between the bearings, any mounting positions. To reduce the temperature of the mechanisms, it is possible to install an external reservoir for cooling lubricants, as well as retrofitting bearing assemblies with cooling flanges.
The gear change via the controller is carried out using these microswitches in the standard or an optional electronic sensor (SensorShift).
Technical characteristics of Stober Antriebstechnik PS series two-speed gearboxes
- Gear ratio: 1 - 5,5;
- The maximum allowable moment: 1600 - 2200 Nm;
- Number of steps: 2;
- Rated power: 47 kW;
- Operating temperature range: 0 ... + 40 °C.
Standard sizes of Stober Antriebstechnik PS series two-speed gearboxes
Type of gearbox | Gear ratio | Moment, Nm | ||
PS2501 | 4 | 1 | 400 | 1600 |
PS2501 | 5,5 | 1 | 400 | 2200 |
PS3001 | 4 | 1 | 400 | 1600 |
PS3001 | 5,5 | 1 | 400 | 2200 |
You can buy Stober Antriebstechnik PS series two-speed gearboxes, find out the price and more information about the product by contacting our specialists.
