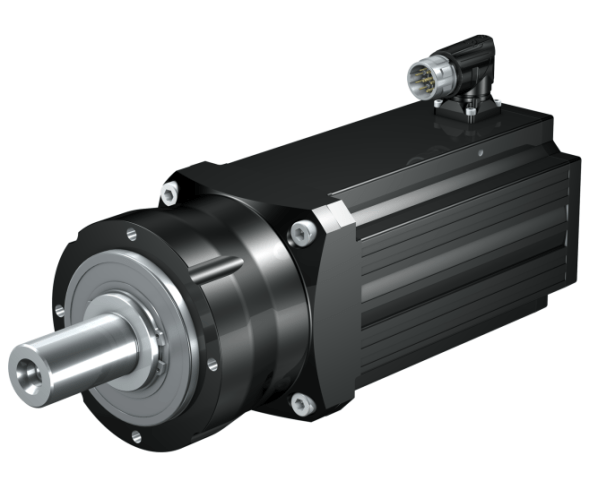

Planetary coaxial gear motors rulers On from Stober Antriebstechnik, in combination with highly efficient electric motors (over IE4), it is a reliable and high-performance technological solution for performing tasks of various levels of complexity with high accuracy without the use of feedback sensors. Robust construction, concise design and compact dimensions. A wide range of possible applications, in particular for conducting production processes under conditions of increased mechanical loads.
The advantages of this type of gear motors distinguish them from the number of standard market offers, realizing in a single product the reliability of asynchronous motors and advanced control capabilities inherent in servos. Small backlash (8-10 angular min.), any mounting positions, cylindrical shaft with keyed connection or smooth at the outlet. On request, the complete set can be expanded with reinforced versions of bearings, a brake block.
For more information about the series of electric motors included in these gear motors, see the page "Stober Antriebstechnik Synchronous motors of the LM series".
Technical characteristics of Stober Antriebstechnik PE series energy-saving gear motors
- Gear ratio: 3 - 20;
- Maximum output torque: 13 - 310 Nm;
- Maximum speed at the entrance: 4500 - 6000 rpm;
- Rated output speed: 150 - 1000 rpm;
- Number of steps: 1, 2;
- Flange Dimensions: 98, 115, 145 mm;
- The degree of protection of the case: gearbox IP65, motor IP56 (IP66 on request);
- Cooling system (motor): IC 410;
- Operating temperature range: 0 ... + 40 °C;
- Insulation class: F.
Standard sizes of Stober Antriebstechnik PE series gear motors
Type of gear motor | Gear ratio | Moment, Nm |
PE311 | 3 – 7 | 13 – 40 |
PE312 | 12 – 16 | 51 – 55 |
PE411 | 3 – 10 | 28 – 99 |
PE412 | 12 – 16 | 111 – 120 |
PE511 | 3 – 10 | 59 – 250 |
PE512 | 12 – 20 | 232 – 310 |
You can buy energy-saving Stober Antriebstechnik PE series gear motors, find out the price and more information about the product by contacting our specialists.
