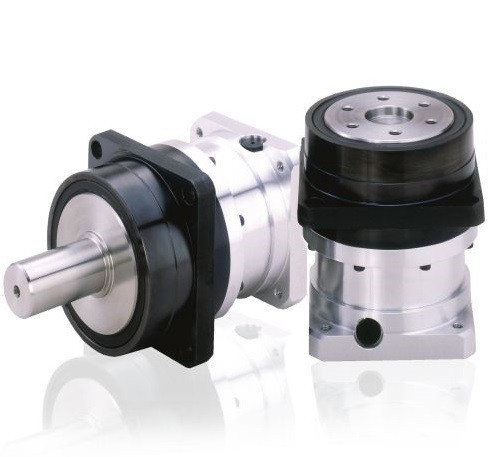

Sumitomo Planetary Gearboxes series IB P1 designed to perform tasks requiring high accuracy, the backlash values in the standard configuration are 15 angular minutes, a version with an acceptable deviation of 3 angular minutes is also available on request. The model range is represented by three standard sizes with single-stage (ratios 3.7 - 9) and two-stage (11 - 81) transmission.
Practical compact design and high performance dynamics. Very easy integration process, this series is compatible with all standard servo motors. The body and gears are made of chrome-molybdenum steel, the shafts are made of S45C steel. A solid shaft with a keyed connection or a smooth one can be installed at the outlet, as well as a flange mount.
Technical parameters of Sumitomo IB P1 Series servo reducers
- Rated torque: up to 153 Nm;
- Gear ratio: 5 - 81;
- Number of gears: 1, 2;
- Motor power: 0.05 - 5 kW.
Standard sizes of Sumitomo IB P1 gearboxes
Type of gearbox | Nom. moment, Nm (300 rpm) | Max. moment acceleration /deceleration, Nm | Ratio transfers |
P110 | 10,5 - 22,0 | 35 - 45 | 5 - 81 |
P120 | 42,5 - 54,5 | 135 - 190 | 5 - 81 |
P130 | 86,5 - 97,5 | 330 - 380 | 5 - 15 |
You can buy Sumitomo IB P1 series servo reducers, find out the price and more information about the product by contacting our specialists.
