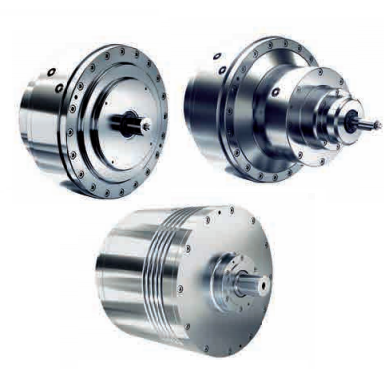

Company Sumitomo Drive Technologies has developed an innovative line of special purpose gearboxes ZS, ZSP, ZP for operation as part of a centrifuge drive, including decanters. They are ideal for these highly dynamic applications, handle high loads perfectly and ensure the safe, reliable operation of centrifugal systems.
The transmission housing and all mechanical components are made of steel, an excellently balanced design in contrast to the vibration factors of high-speed modes.
This family of programs is represented by three series:
ZS - compact and high-performance single-stage gearboxes with cycloidal transmission, 14 standard sizes, two modifications ZS-M and ZS-L;
ZSP - combined two-stage gearboxes with cycloidal and planetary gears, versions ZSPN, ZSPV, ZSPR for various types of centrifuges, 12 standard sizes, two modifications ZSP -M and ZSP -L;
ZP - planetary gearboxes with two- and three-stage configurations, versions of ZPN, ZPV, ZPR for various types of centrifuges, 6 standard sizes, 4 auxiliary single-stage gears with two variations of the direction of rotation. .
Technical characteristics of gearboxes for Sumitomo ZS, ZSP, ZP centrifuges
- Maximum torque: 300 - 46000 Nm;
- Gear ratio: 6 - 348;
- Number of steps: 1, 2, 3.
Standard sizes of Sumitomo ZS, ZSP, ZP series transmissions
Type of gearbox | Max. moment, Nm | Transmission ratio |
cycloidal gearboxes | ||
ZS 610 | 300 | 6 - 87 |
ZS 611 | 420 | 6 - 87 |
ZS 612 | 630 | 6 - 87 |
ZS 614 | 1320 | 21 - 87 |
ZS 616 | 2100 | 21 - 87 |
ZS 617 | 3500 | 21 - 87 |
ZS 618 /ZS 618 (L) | 5000 /6500 | 21 - 87 /29 - 71 |
ZS 619 /ZS 619 (L) | 7960 /10400 | 21 - 87 /29 - 71 |
ZS 621 /ZS 621 (L) | 12650 /17000 | 21 - 87 /29, 59 |
ZS 622 /ZS 622 (L) | 15880 /21000 | 21 - 87 /29, 59 |
ZS 623 /ZS 623 (L) | 20500 /26500 | 21 - 87 /29, 59 |
ZS 624 /ZS 624 (L) | 25800 /33500 | 21 - 87 /29, 59 |
ZS 625 | 34500 | 21 - 87 |
ZS 626 | 46000 | 21 - 87 |
two-stage cycloidal planetary gearboxes | ||
ZSP 612 | 630 | 45 - 348 |
ZSP 614 | 1320 | 45 - 348 |
ZSP 616 | 2100 | 45 - 348 |
ZSP 617 | 3500 | 45 - 348 |
ZSP 618 /ZSP 618 (L) | 5000 /6500 | 45 - 348 /87 - 284 |
ZSP 619 /ZSP 619 (L) | 7960 /10400 | 45 - 348 /87 - 284 |
ZSP 621 /ZSP 621 (L) | 12650 /17000 | 45 - 348 /87, 116, 177, 284 |
ZSP 622 /ZSP 622 (L) | 15880 /21000 | 63 - 348 /87, 116, 177, 284 |
ZSP 623 /ZSP 623 (L) | 20500 /26500 | 51 - 348 /87, 116, 177, 284 |
ZSP 624 /ZSP 624 (L) | 25880 /33500 | 51 - 348 /87, 116, 177, 284 |
ZSP 625 | 34500 | 51 - 348 |
ZSP 626 | 46000 | 100 - 348 |
two- and three-stage planetary gearboxes | ||
ZPN, ZPV, ZPR | 5000 | 20 - 224 |
ZPN, ZPV, ZPR | 8000 | 20 - 224 |
ZPN, ZPV, ZPR | 12000 | 20 - 224 |
ZPN, ZPV, ZPR | 20000 | 20 - 224 |
ZPN, ZPV, ZPR | 30000 | 20 - 224 |
ZPN, ZPV, ZPR | 40000 | 20 - 224 |
auxiliary single-stage planetary gearboxes | ||
ZPV, ZPR 80 | 40 | -3, 4 |
ZPV, ZPR 115 | 130 | -3, 4 |
ZPV, ZPR 142 | 320 | -3, -4, 4, 5 |
ZPV, ZPR 190 | 640 | -3, -4, 4, 5 |
