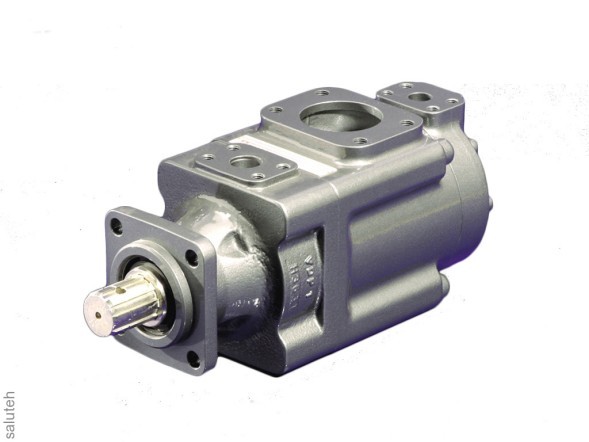

Plate pump PFE-41045/1DT

PFE - unregulated plate pumps (number of plates - 12), 2 and 3, cartridge version with integrated hydraulic balancer 4 for operation at high pressure and to increase the time between maintenance at low noise level.

The oils used must comply with the requirements of the DIN 51524 standard...535 or (in the case of synthetic liquids), they must have identical lubricating properties.
These pumps can be supplied in single and multi-section versions or with a through shaft. The connection of the pump to the hydraulic system is carried out in accordance with SAE and ISO 3019 standards. To facilitate the connection of hydraulic lines, there are four possible options for the arrangement of oil channels. Dismantling of the pumping unit is carried out in a few minutes, which greatly facilitates maintenance.

Working volumes: up to 150 cm3/vol.
Maximum pressure: 210 bar.
Rotation speed 800-2500
7 bar l/min 64
7 bar kW 1.3
70 bar l/min 62
