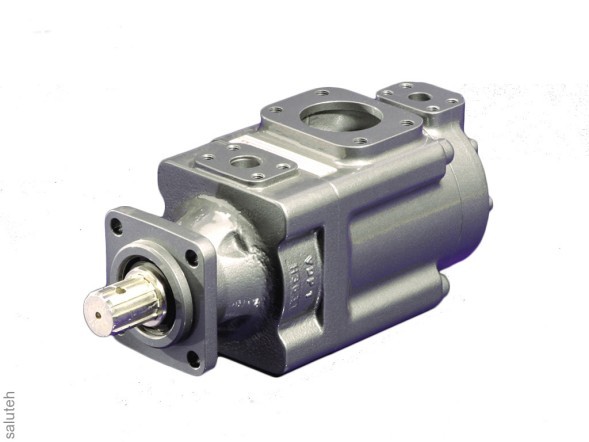

Plate pump PFE-42056/3DT 20

PFE-*2 are unregulated plate pumps (number of plates - 12) 2 and 3, cartridge version with integrated hydraulic balancer 4 for operation at high operating pressure, extended service intervals with an even lower noise level compared to PFE-*1

The oils used must comply with the requirements of the DIN 51524 standard...535 or (in the case of synthetic liquids), they must have identical lubricating properties. These pumps can be supplied in single and multi-section versions or with a through shaft.
The pump is connected to the hydraulic system in accordance with SAE and ISO 3019 standards. To facilitate the connection of hydrolines, there are four possible options for positioning oil channels. Dismantling of the pumping unit is carried out in a few minutes, which greatly facilitates maintenance.

Working volumes: up to 150 cm3/vol.
Maximum pressure: 300 bar.
Rotation speed 1000-2200
7 bar l/min 80
7 bar kW 1.6
70 bar l/min 75
