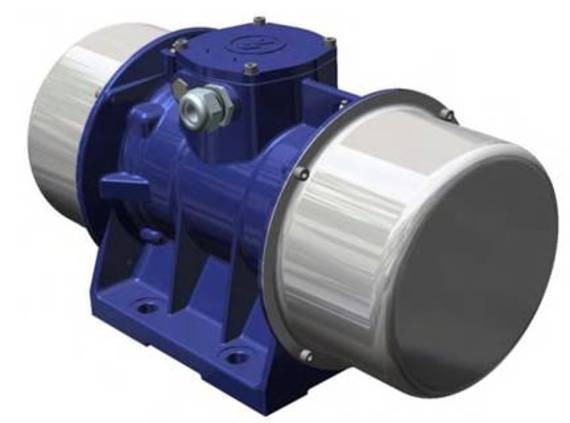

Industrial Vibrators VV-C (CSA certification) from a German company Aldak Vibrationstechnik They are electromechanical devices for surface placement and actuation of vibrating equipment for working with bulk materials and products (sealing, loosening, unloading, sieving, etc.). The design consists of electric motors with eccentric loads installed at both ends of the shaft.
High starting torque values, suitable for continuous operation, adjustment of power values in the range from 0 to 100%. Fully sealed design, aluminum is used as body materials for small sizes, high-strength cast iron for more powerful models, stainless steel covers. The lubrication of the moving elements is designed for a long-term period of operation.
Technical characteristics of Aldak VV-C series pad vibrators
- Centrifugal (driving) force: 35 - 6600 kg;
- Static moment: 12 - 5714 kg•mm;
- Rated power: 0.08 - 5.7 kW;
- Rated current: 0.2 - 10 A;
- Supply voltage: 230 V, 400 V;
- Rotation speed: 750 /1000 /1500 /3000 rpm;
- The degree of protection of the case: IP66;
- Insulation class: F;
- Operating temperature range: -20 … + 40 °C.
Standard sizes of Aldak VV-C series motor vibrators (2-pole, 3000 rpm, 50 Hz)
Type vibration motors | Forcing power, kg | Static torque, kg·mm | Power, kW | Current, A
|
VV03N/2-C | 120 | 12 | 0,17 | 0,33 |
VV05N/2-C | 205 | 20 | 0,17 | 0,33 |
VV10N/2-C | 320 | 32 | 0,25 | 0,57 |
VV15N/2-C | 520 | 52 | 0,43 | 0,76 |
VV25N/2-C | 800 | 80 | 0,61 | 1,0 |
VV35N/2-C | 1150 | 114 | 0,95 | 1,6 |
VV38N/2-C | 1600 | 159 | 1,9 | 3,2 |
VV40N/2-C | 2350 | 234 | 2,1 | 3,4 |
VV45N/2-C | 3250 | 324 | 3,8 | 6,2 |
VV55N/2-C | 4000 | 399 | 3,8 | 6,2 |
VV67N/2-C | 6400 | 636 | 5,3 | 8,8 |
Standard sizes of Aldak VV-C series motor vibrators (4-pole, 1500 rpm, 50 Hz)
Type vibration motors | Forcing power, kg | Static torque, kg·mm | Power, kW | Current, A
|
VV03B/4-C | 35 | 14 | 0,08 | 0,20 |
VV05B/4-C | 80 | 32 | 0,08 | 0,20 |
VV10B/4-C | 220 | 87 | 0,16 | 0,38 |
VV20B/4-C | 420 | 167 | 0,28 | 0,57 |
VV21B/4-C | 550 | 222 | 0,28 | 0,57 |
VV30B/4-C | 750 | 298 | 0,50 | 0,88 |
VV35B/4-C | 1100 | 437 | 0,52 | 0,90 |
VV38B/4-C | 1400 | 556 | 0,85 | 1,37 |
VV40B/4-C | 1800 | 714 | 1,1 | 1,91 |
VV41B/4-C | 2100 | 833 | 1,3 | 2,40 |
VV50B/4-C | 2500 | 992 | 1,5 | 3,00 |
VV53B/4-C | 3150 | 1250 | 1,8 | 3,60 |
VV55B/4-C | 3800 | 1508 | 2,1 | 3,80 |
VV57B/4-C | 4400 | 1746 | 2,4 | 4,60 |
VV60B/4-C | 5000 | 1984 | 3,4 | 5,70 |
VV67B/4-C | 6600 | 2619 | 5,7 | 10,0 |
Standard sizes of Aldak VV-C series motor vibrators (6-pole, 1000 rpm, 50 Hz)
Type vibration motors | Forcing power, kg | Static torque, kg·mm | Power, kW | Current, A |
VV20B/6-C | 200 | 179 | 0,18 | 0,48 |
VV30B/6-C | 300 | 268 | 0,33 | 0,68 |
VV35B/6-C | 500 | 446 | 0,33 | 0,71 |
VV38B/6-C | 800 | 714 | 0,64 | 1,3 |
VV40B/6-C | 1100 | 982 | 0,71 | 1,6 |
VV41B/6-C | 1500 | 1339 | 0,90 | 2,0 |
VV50B/6-C | 1700 | 1518 | 1,0 | 2,1 |
VV53B/6-C | 2200 | 1964 | 1,4 | 2,8 |
VV55B/6-C | 2600 | 2321 | 1,8 | 3,9 |
VV57B/6-C | 3100 | 2767 | 2,1 | 4,3 |
VV60B/6-C | 3900 | 3482 | 2,4 | 4,8 |
VV62B/6-C | 4800 | 4285 | 3,1 | 6,3 |
VV65B/6-C | 5300 | 4732 | 3,6 | 6,7 |
VV67B/6-C | 6400 | 5714 | 4,1 | 7,7 |
Standard sizes of Aldak VV-C series motor vibrators (8-pole, 750 rpm, 50 Hz)
Type vibration motors | Forcing power, kg | Static torque, kg·mm | Power, kW | Current, A
|
VV20B/8-C | 113 | 179 | 0,21 | 0,80 |
VV30B/8-C | 200 | 317 | 0,33 | 1,0 |
VV35B/8-C | 281 | 446 | 0,26 | 0,57 |
VV38B/8-C | 450 | 714 | 0,37 | 1,1 |
VV40B/8-C | 619 | 982 | 0,37 | 1,3 |
VV50B/8-C | 956 | 1518 | 0,90 | 2,1 |
VV53B/8-C | 1220 | 1937 | 1,05 | 2,5 |
VV55B/8-C | 1462 | 2321 | 1,4 | 3,6 |
VV60B/8-C | 2194 | 3482 | 1,9 | 5,1 |
VV62B/8-C | 2700 | 4285 | 2,4 | 5,8 |
VV65B/8-C | 2981 | 4732 | 2,7 | 6,2 |
VV67B/8-C | 3600 | 5714 | 3,8 | 7,7 |
You can buy Aldak VV-C vibration motors, find out the price and more information about the product by contacting our specialists.
