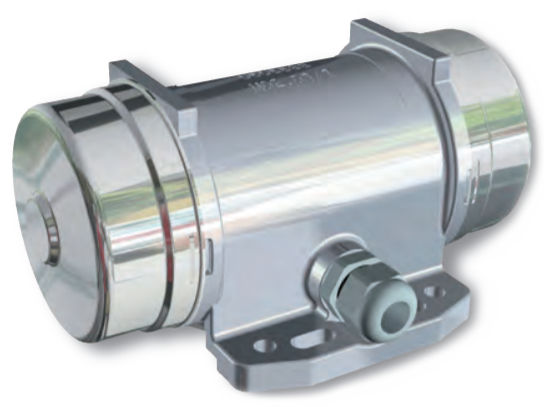

Miniature Industrial Vibrators VV Micro productions Aldak Vibration Technology They are electromechanical devices for surface placement and actuation of vibrating equipment for working with bulk materials and products (sealing, loosening, unloading, sieving, etc.). The design consists of electric motors with eccentric loads installed at both ends of the shaft.
Excellent power characteristics, flexible settings, sealed design, suitable for use in explosive atmospheres according to Atex (Ex II3D tD A22 IP65 T100°C). Aluminum is used as the body materials, the lubrication of the moving elements is designed for a long-term period of operation.
Technical characteristics of Aldak VV Micro series pad vibrators
- Centrifugal (driving) force: 4 - 45 kg;
- Rated power: 0.024 - 0.045 kW;
- Rated current: 0.13 - 0.46 A;
- Supply voltage: 115 V, 230 V, 400 V;
- Rotation speed: 3000 rpm;
- The degree of protection of the case: IP65;
- Insulation class: F;
- Operating temperature range: -20 … + 40 °C.
Standard sizes of Aldak VV Micro series motor vibrators (2-pole, 3000 rpm, 50 Hz)
Type vibration motors | Centrifugal power, kg | Power, kW | Current, A (400V /220V /115V) |
000N/2 | 4 | 0,024 | - /0,13 /0,30 |
001N/2 | 20 | 0,035 | 0,15 /0,17 /0,42 |
002N/2 | 45 | 0,045 | 0,16 /0,20 /0,46 |
You can buy Aldak VV Micro vibration motors, find out the price and more information about the product by contacting our specialists.
