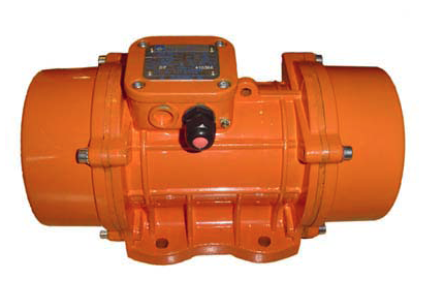

Electromechanical vibrators of the series MVE from a German company Berger Maschinenbau designed to work with bulk materials and industrial products, they are used to carry out the processes of unloading bunkers, conveyor movement, sieving, separation, sealing, loosening. Also, these site vibration motors are popular in construction for working with formwork structures in order to improve the quality of manufacturing concrete products.
The housing is completely sealed against water and dust ingress. Aluminum is used as materials for small sizes, and steel is used for more powerful ones, in both cases these are cast molds. The support units are reinforced and designed for continuous use. Circular vibration is generated by means of eccentric loads installed at both ends of the shaft. The strength and amplitude of the vibrations are adjustable, as well as flexible adjustment of the rotation speed using a frequency converter.
This product is certified for use in explosive zone 22 (ATEX Ex II 3D 100 °C), to ensure a higher level of protection, versions of the MVE-E (Ex e II tD A21 T 150 °C), MVE-D (II GD Ex d IIB T4 Ex tD A21 IP66 T135 are available for order ° C).
Technical characteristics of Berger Maschinenbau MVE series pad vibrators
- Centrifugal (driving) force: 250 - 128000 N;
- Working moment: 1.35 - 2329.84 kg cm;
- Power: 0.04 - 10 kW;
- Current: 0.16 - 17 A;
- Supply voltage: 230 В (1 фз AC, 50 Гц), 230 и и 380 - 400 В (3 фз AC, 50 Гц);
- Rotation speed: 750 /1000 /1500 /3000 rpm;
- The degree of protection of the case: IP66;
- Insulation class: F;
- Operating temperature range: -20 … +40 °C.
Standard sizes of Berger Maschinenbau MVE motor vibrators (2-pole version, 3000 rpm)
Type vibration motors | Centrifugal power, N | Worker moment, kg cm | Power, kW | Current, A |
MVE 60/3 | 670 | 1,35 | 0,08 | 0,16 |
MVE 100/3 | 990 | 2,01 | 0,10 | 0,19 |
MVE 200/3 | 1830 | 3,72 | 0,18 | 0,35 |
MVE 201/3 | 1830 | 3,72 | 0,18 | 0,35 |
MVE 300/3 | 3150 | 6,19 | 0,27 | 0,52 |
MVE 400/3 | 3990 | 7,96 | 0,30 | 0,58 |
MVE 500/3 | 5200 | 10,27 | 0,50 | 0,96 |
MVE 700/3 | 7400 | 14,90 | 0,66 | 1,25 |
MVE 800/3 | 7800 | 15,68 | 0,75 | 1,45 |
MVE 1200/3 | 9900 | 20,26 | 0,95 | 1,85 |
MVE 1300/3 | 13100 | 27,58 | 1,3 | 2,44 |
MVE 1301/3 | 13100 | 27,58 | 1,3 | 2,44 |
MVE 1310/3 | 11000 | 22,34 | 1,3 | 2,44 |
MVE 1600/3 | 15700 | 31,26 | 1,6 | 2,94 |
MVE 2000/3 | 19900 | 36,78 | 2,0 | 3,75 |
MVE 2300/3 | 22600 | 45,97 | 2,4 | 4,44 |
MVE 3200/3 | 31900 | 68,10 | 2,9 | 5,30 |
MVE 4000/3 | 39600 | 79,40 | 2,9 | 5,30 |
MVE 5000/3 | 49000 | 103,24 | 4,0 | 7,22 |
MVE 6500/3 | 64000 | 129,55 | 5,5 | 9,50 |
MVE 9000/3 | 89000 | 179,59 | 10 | 14,0 |
Standard sizes of Berger Maschinenbau MVE motor vibrators (4-pole version, 1500 rpm)
Type vibration motors | Centrifugal power, N | Worker moment, kg cm | Power, kW | Current, A |
MVE 40/15 | 250 | 1,97 | 0,04 | 0,31 |
MVE 90/15 | 740 | 5,97 | 0,12 | 0,30 |
MVE 200/15 | 1900 | 15,4 | 0,16 | 0,49 |
MVE 300/15 | 3280 | 26,6 | 0,62 | 1,32 |
MVE 400/15 | 4120 | 33,4 | 0,30 | 0,84 |
MVE 500/15 | 4940 | 44,6 | 0,35 | 1,06 |
MVE 700/15 | 7000 | 56,8 | 0,62 | 1,32 |
MVE 1100/15 | 10900 | 88,7 | 0,65 | 1,50 |
MVE 1400/15 | 13400 | 109 | 0,90 | 1,71 |
MVE 1700/15 | 16900 | 137 | 1,15 | 2,16 |
MVE 2400/15 | 23100 | 188 | 1,60 | 3,00 |
MVE 2500/15 | 25100 | 204 | 1,80 | 3,40 |
MVE 3000/15 | 30600 | 249 | 1,90 | 3,70 |
MVE 3800/15 | 37800 | 307 | 2,2 | 4,12 |
MVE 4300/15 | 42300 | 343 | 2,5 | 5,70 |
MVE 5500/15 | 53900 | 437 | 3,6 | 6,50 |
MVE 7200/15 | 71100 | 577 | 5,0 | 9,60 |
MVE 9000/15 | 88500 | 718 | 7,5 | 12,0 |
MVE 10000/15 | 98600 | 800 | 7,8 | 13,0 |
Standard sizes of Berger Maschinenbau MVE motor vibrators (6-pole version, 1000 rpm)
Type vibration motors | Centrifugal power, N | Worker moment, kg cm | Power, kW | Current, A |
MVE 50/1 | 520 | 9,49 | 0,12 | 0,40 |
MVE 100/1 | 1030 | 18,8 | 0,12 | 0,40 |
MVE 200/1 | 1830 | 33,49 | 0,29 | 0,76 |
MVE 300/1 | 2620 | 47,82 | 0,35 | 0,67 |
MVE 500/1 | 4660 | 85,07 | 0,35 | 1,20 |
MVE 800/1 | 7520 | 137,37 | 0,68 | 1,29 |
MVE 1100/1 | 10300 | 187,69 | 0,75 | 1,42 |
MVE 1500/1 | 15600 | 284,76 | 1,10 | 2,10 |
MVE 1600/1 | 16400 | 299,63 | 1,10 | 2,83 |
MVE 2100/1 | 20400 | 373,05 | 1,50 | 3,00 |
MVE 2600/1 | 25600 | 467,44 | 1,96 | 3,63 |
MVE 3000/1 | 29600 | 540,33 | 2,20 | 4,50 |
MVE 3800/1 | 37300 | 680,38 | 2,50 | 4,67 |
MVE 4700/1 | 45900 | 838,34 | 3,20 | 6,50 |
MVE 5200/1 | 51000 | 929,86 | 3,80 | 6,92 |
MVE 6500/1 | 64000 | 1165,19 | 4,30 | 7,76 |
MVE 8000/1 | 79000 | 1435,98 | 7,10 | 12,6 |
MVE 9000/1 | 88000 | 1600,39 | 7,50 | 13,2 |
MVE 10000/1 | 98000 | 1788,44 | 7,60 | 13,5 |
MVE 13000/1 | 128000 | 2329,84 | 10,0 | 17,0 |
Standard sizes of Berger Maschinenbau MVE motor vibrators (8-pole version, 750 rpm)
Type vibration motors | Centrifugal power, N | Worker moment, kg cm | Power, kW | Current, A |
MVE 150/075 | 1030 | 33,39 | 0,23 | 1,14 |
MVE 250/075 | 1770 | 57,27 | 0,35 | 1,15 |
MVE 400/075 | 2590 | 84,02 | 0,35 | 1,15 |
MVE 650/075 | 4200 | 137,31 | 0,50 | 1,20 |
MVE 900/075 | 5800 | 187,72 | 0,65 | 1,56 |
MVE 1300/075 | 9200 | 299,6 | 1,00 | 2,20 |
MVE 2100/075 | 14400 | 467,41 | 1,50 | 2,81 |
MVE 3100/075 | 21000 | 680,34 | 2,00 | 3,79 |
MVE 3800/075 | 25800 | 838,43 | 2,50 | 6,00 |
MVE 4200/075 | 29000 | 929,74 | 2,90 | 6,50 |
MVE 5300/075 | 36000 | 1165,22 | 4,00 | 8,50 |
MVE 6500/075 | 44000 | 1435,85 | 5,00 | 10,0 |
MVE 10000/075 | 68000 | 2200,43 | 6,80 | 13,5 |
You can buy Berger Maschinenbau MVE vibration motors, find out the price and more information about the product by contacting our specialists.
