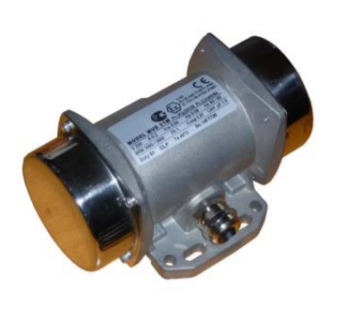

Electromechanical vibrators of the series MVE-Micro from a German company Berger Maschinenbau designed to work with bulk materials and industrial products, they are used for unloading small bunkers, conveyor movement, dosing, sieving, separation, sealing, loosening, etc. They are certified for use in explosive zone 22 (ATEX Ex II 3D 100°C).
The housing is reliably protected from dust and water ingress into the machine, cast aluminum frame. Circular vibration is generated by means of eccentric loads installed at both ends of the shaft. The strength and amplitude of the vibrations are adjustable, as well as flexible adjustment of the rotation speed using a frequency converter.
Technical characteristics of Berger Maschinenbau series MVE-Micro pad vibrators
- Centrifugal (driving) force: 39 - 441 N;
- Working moment: 0.08 - 0.90 kg cm;
- Power: 0.03 - 0.07 kW;
- Current: 0.17 - 0.30 A;
- Supply voltage: 230 В (1 фз AC, 50 Гц), 230 и и 380 - 400 В (3 фз AC, 50 Гц);
- Rotation speed: 3000 rpm;
- The degree of protection of the case: IP66;
- Insulation class: F;
- Operating temperature range: -20 … +40 °C.
Standard sizes of Berger Maschinenbau MVE-Micro motor vibrators (2-pole version, 3000 rpm)
Type vibration motors | Centrifugal power, N | Worker moment, kg cm | Power, kW | Current, A |
single-phase 230 V power supply | ||||
MVE Micro 3/3 M | 39 | 0,08 | 0,03 | 0,30 |
MVE Micro 6/3 M | 59 | 0,12 | 0,03 | 0,30 |
MVE Micro 21/3 M | 196 | 0,40 | 0,04 | 0,20 |
MVE Micro 41/3 M | 441 | 0,90 | 0,05 | 0,25 |
three-phase 380 V power supply | ||||
MVE Micro 21/3 | 196 | 0,40 | 0,03 | 0,17 |
MVE Micro 41/3 | 432 | 0,86 | 0,07 | 0,30 |
You can buy Berger Maschinenbau MVE-Micro vibration motors, find out the price and more information about the product by contacting our specialists.
