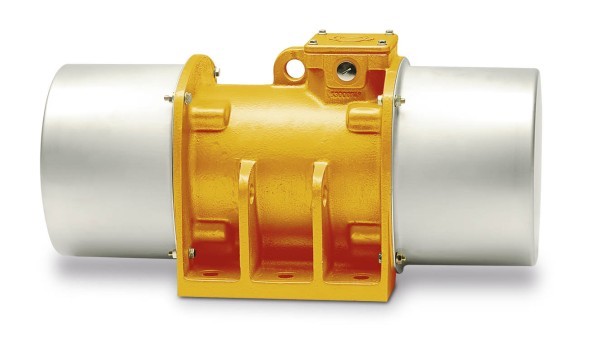

Vibration motors Frederick series FHE designed for use in the food, pharmaceutical and chemical industries. Thanks to the special shape and reliable protection of the O-ring, the motors are protected from dust and water. Vibration motors have roller bearings with high load capacity and long service life, lubricated with a special lubricant. The lubricant is designed for the entire service life.
The engine body is made of stainless steel. The body color is in accordance with RAL 6011. Two-component epoxy paint STEEL IT and other colors on request. The coating is approved by the USDA and is resistant to chemicals, alkalis and acids, cleaning procedures, as well as UV rays. Special versions made of cold-resistant steel up to -65 °C are available on request. The vibrators are connected using a flexible cable for high mechanical loads, for example, H07RN-F or A07RN-F according to DIN VDE 0282.
Technical characteristics of Friedrich FHE series vibration motors
- Frequency: 50.60 Hz
- Voltage: from 115 to 690 V
- Active power: 0,15-8 kW
- Rated current: 0,72-17,1 But
- Degree of protection: IP 66
- Thermal class: F (155 ° C) in accordance with DIN EN 60034-1
- Permissible ambient temperature: -20 to +40 ° C
- Operating mode: Continuous operation (S1) and intermittent operation at 100% centrifugal force
- Lids: lids made of special shaped stamped steel. The silicone seal protects against water and dust.
- Installation: Without restrictions, vibrators can be installed in any position.
- Coverage: The standard is RAL 6011. Other colors are available on request.
