Industrial vibrators of the family and from a German company Mooser We are ready to work in the most difficult conditions, ensuring maximum performance and durability of the application. They are used as part of vibration equipment to carry out processes for compaction, loosening, separation, sieving, transportation, unloading of materials of various nature and fractions.
Series AND 12 It is represented by a model range of six standard sizes, these are reliable and practical vibration drives, lubrication of bearings for the entire service life. The power characteristics are regulated stepwise (from 8 to 20 variations) by changing the weight load (eccentric loads). The housing is made of aluminum (injection molding) and has a high protection class against dust and moisture penetration.

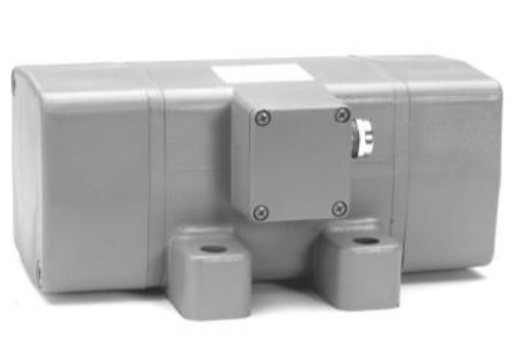

Technical characteristics of Mooser VE 12 series pad vibrators
- Centrifugal (driving) force: 1310 - 6000 N;
- Static moment: 12 - 42 cm•kg;
- Rated power: 0.25 - 0.65 kW;
- Rated current: 0.60 - 2.16 A;
- Supply voltage: 230 /400 V, 3 phase AC, 50 Hz (other values on request);
- Rotation speed: 750 /1000 /1500 /3000 rpm;
- The degree of protection of the case: IP65;
- Insulation class: F.
Standard sizes of Mooser VE 12 series motor vibrators
Type vibration motors | Centrifugal power, kg | Static moment, cm·kg | Current, A 230 /400 V | Power, kW |
VE 12/2 (3000 rpm) | 6000 | 12 | 2,16 /1,25 | 0,65 |
VE 12/4-18 (1500 rpm) | 2200 | 18 | 1,43 /0,83 | 0,45 |
VE 12/4-30 (1500 rpm) | 3750 | 30 | 1,43 /0,83 | 0,45 |
VE 12/4-42 (1500 rpm) | 5250 | 42 | 1,43 /0,83 | 0,45 |
VE 12/6-42 (1000 rpm) | 2230 | 42 | 1,12 /0,65 | 0,30 |
VE 12/8-42 (750 rpm) | 1310 | 42 | 1,00 /0,60 | 0,25 |
You can buy Mooser VE 12 vibration motors, find out the price and more information about the product by contacting our specialists.
