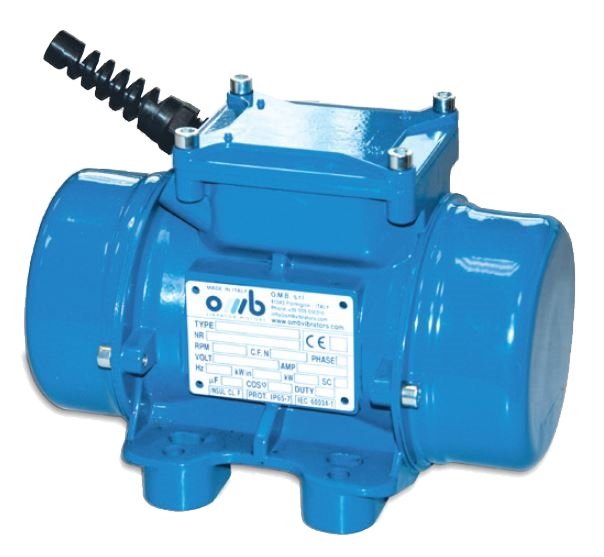

Pad vibrators BMCC from the company OMB they are collector electric motors with installed eccentric loads at both ends of the shaft, due to the rotation of which circular vibrations are created. Motors of this series are used to supply direct current with a voltage of 12 V or 24 V, which makes them an excellent offer for operation outside the electrical network, for example, as part of mobile vibration equipment, in laboratory installations, on board vehicles, etc.
The model range consists of five standard sizes with a nominal speed of 3100 or 5100 rpm. The package includes a 2.5 meter long power cable. Optionally available to order versions with stainless steel caps, with other speed parameters.
Technical Characteristics of OMB BMCC series pad vibrators
- Centrifugal (driving) force: 1960 - 10790 N;
- Static moment: 5,26 - 75,9 kgmm;
- Supply voltage: 12 /24 V DC;
- Rotation speed: 3100 /5500 rpm.
Standard sizes of OMB motor vibrators of the BMCC series
Type of vibration motor | Centrifugal power, N | Static The moment, kgmm | Speed, rpm |
BMCC 200/3 | 1960 | 18,6 | 3100 |
BMCC 200/6 | 1750 | 5,26 | 5500 |
BMCC 400/3 | 3790 | 35,93 | 3100 |
BMCC 400/6 | 4410 | 13,3 | 5500 |
BMCC 1100/3 | 10790 | 75,9 | 3600 |
You can buy OMB BMCC series vibration motors, find out the price and more information about the product by contacting our specialists.
