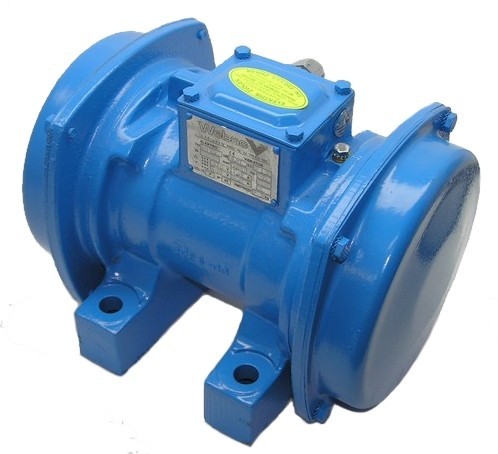

Industrial Vibrators Series EAO from a German company Webac They are designed to generate circular vibration and are used as part of a wide range of vibration installations (vibrating tables, vibrating platforms, vibrating screens, etc.), in the manufacture of concrete products, unloading of bunkers, conveyor transportation of materials, etc.
Model range in 2-, 4-, 6- and 8-pole versions, special bearings to ensure continuous operation at full load. High efficiency with small dimensions, reliable design designed for a long service life, resistance to aggressive factors and a wide range of permissible temperature conditions.
Technical characteristics of Webac EAO series site vibrators
- Centrifugal (driving) force: 450 - 99345 N;
- Static moment: 27 - 105320 kgmm;
- Power: 0.12 - 10 kW;
- Supply voltage: standard 230/400 V (3 phase AC, 50 Hz), other values on request;
- Rotation speed: 750 /1000 /1500 /3000 rpm;
- The degree of protection of the case: IP65;
- Insulation class: F;
- Operating temperature range: -30 … +40 °C;
Standard sizes of Webac EAO motor vibrators (2-pole version, 3000 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Power, kW |
EAO 2/02 | 2500 | 27 | 0,18 |
EAO 2/07 | 6410 | 70 | 0,37 |
EAO 2/15 | 12910 | 140 | 0,75 |
EAO 2/20 | 19020 | 200 | 2,0 |
Standard sizes of Webac EAO motor vibrators (4-pole version, 1500 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Power, kW |
EAO 4/02 | 1300 | 60 | 0,12 |
EAO 4/05 | 4870 | 225 | 0,37 |
EAO 4/10 | 9950 | 450 | 0,75 |
EAO 4/20 | 16820 | 750 | 1,4 |
EAO 4/25 | 23695 | 1000 | 1,5 |
EAO 4/40 | 40630 | 1750 | 2,7 |
EAO 4/75 | 74290 | 3200 | 4,5 |
EAO 4/100 | 99345 | 4250 | 6,5 |
Standard sizes of Webac EAO motor vibrators (6-pole version, 1000 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Power, kW |
EAO 6/05 | 450 | 4360 | 0,45 |
EAO 6/10 | 900 | 8905 | 0,90 |
EAO 6/17 | 1600 | 16170 | 1.60 |
EAO 6/25 | 2150 | 22185 | 2,15 |
EAO 6/40 | 3170 | 38175 | 3,17 |
EAO 6/75 | 7000 | 71485 | 7,00 |
EAO 6/110 | 10000 | 105320 | 10,0 |
Standard sizes of Webac EAO motor vibrators (8-pole version, 750 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Power, kW |
EAO 8/04 | 3950 | 693 | 0,25 |
EAO 8/30 | 26910 | 4800 | 2,1 |
EAO 8/60 | 55335 | 9600 | 4,2 |
EAO 8/100 | 99345 | 17000 | 6,5 |
You can buy Webac EAO vibration motors, find out the price and more information about the product by contacting our specialists.
