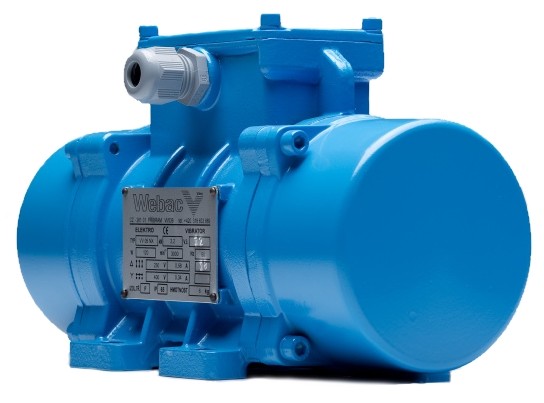

Industrial Vibrators Series EAW from a German company Webac They are designed to generate circular vibration and are used as part of a wide range of vibration installations (vibrating tables, vibrating platforms, vibrating screens, etc.), in the manufacture of concrete products, unloading of bunkers, conveyor transportation of materials, etc.
Model range in 2-, 4- and 6-pole versions, special bearings to ensure continuous operation at full load. High efficiency with small dimensions, reliable design designed for a long service life, resistance to aggressive factors and a wide range of permissible temperature conditions.
Technical characteristics of EAW series Webac pad vibrators
- Centrifugal (driving) force: 216 - 132000 N;
- Static moment: 2 - 12000 kgmm;
- Power: 0.025 - 7.5 kW;
- Supply voltage: standard 230/400 V (3 phase AC, 50 Hz), other values on request;
- Rotation speed: 1000 /1500 /3000 rpm;
- Degree of protection of the case: IP65;
- Insulation class: F;
- Operating temperature range: -30 … +40 °C;
Standard sizes of Webac EAW motor vibrators (2-pole version, 3000 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Power, kW |
2925 | 216 | 2,0 | 0,025 |
IT IS 3000 | 647 | 6,5 | 0,100 |
EAW 2/01 | 1500 | 15 | 0,120 |
EAW 2/02 | 2300 | 23 | 0,120 |
EAW 2/03 | 3200 | 32 | 0,275 |
EAW 2/05 | 5400 | 54 | 0,550 |
EAW 2/10 | 9000 | 90 | 0,550 |
EAW 2/15 | 16000 | 160 | 0,900 |
EAW 2/25 | 24000 | 240 | 1,6 |
EAW 2/40 | 41000 | 410 | 2,6 |
Standard sizes of Webac EAW motor vibrators (4-pole version, 1500 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Power, kW |
IT IS 1500 | 225 | 9,2 | 0,055 |
EAW 4/01 | 570 | 23 | 0,090 |
EAW 4/02 | 800 | 32 | 0,090 |
EAW 4/03 | 1700 | 69 | 0,100 |
EAW 4/04 | 3600 | 146 | 0,22 |
EAW 4/08 | 7600 | 308 | 0,470 |
EAW 4/15 | 15000 | 607 | 0,920 |
EAW 4/27 | 28000 | 1134 | 1,72 |
EAW 4/50 | 50000 | 2025 | 3,07 |
EAW 4/80 | 82500 | 3300 | 5,07 |
Standard sizes of Webac EAW motor vibrators (6-pole version, 1000 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Power, kW |
EAW 6/10 | 10000 | 909 | 0,61 |
EAW 6/20 | 18000 | 1636 | 1,10 |
EAW 6/35 | 33000 | 3000 | 2,03 |
EAW 6/55 | 55000 | 5000 | 3,38 |
EAW 6/100 | 99000 | 9100 | 6,08 |
EAW 6/130 | 132000 | 12000 | 7,50 |
You can buy Webac EAW vibration motors, find out the price and more information about the product by contacting our specialists.
