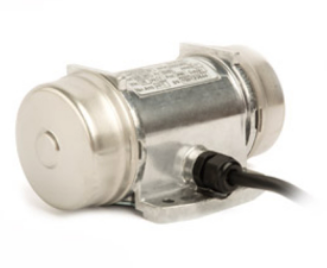

Webac Micro WM Pad Vibrators

Miniature vibrators series Micro WM from a German company Webac They are designed to generate circular vibration and are widely used as part of small vibration installations, hopper unloading, conveyor transportation of materials, etc. They are often used in the food, pharmaceutical and packaging industries. The setting of the centrifugal force is carried out in the range from zero to maximum load, suitable for continuous operation.

The model range consists of three standard sizes, a closed structure with a lightweight frame made of durable aluminum alloy, covers for protecting stainless steel balances. The bearings do not need to be serviced, their lubrication is designed for the entire period of operation.

Technical Characteristics of Webac Micro WM Series pad Vibrators

• Centrifugal (driving) force: 40 - 440 N;
• Static moment: 24 - 45 kgmm;
• Power consumption: 0.13 - 0.42 kW;
• Supply voltage: from 24 to 480 V (3 phases AC, 50 Hz), 100 - 130 V and from 200-240 V (1 phase AC, 50 Hz);
• Rotation speed: 3000 rpm;
• The degree of protection of the case: IP65;
• Insulation class: F;
• Operating temperature range: -30 … +40 °C;

Standard sizes of Webac Micro WM motor vibrators (2-pole version, 3000 rpm)

You can buy Webac Micro WM vibration motors, find out the price and more information about the product by contacting our specialists.
