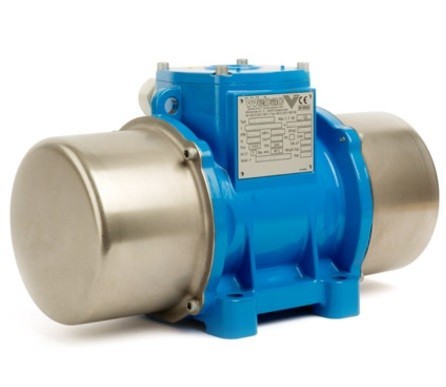

Industrial Vibrators Series WEV from a German company Webac They are designed to generate circular vibration and are used as part of a wide range of vibration installations (vibrating tables, vibrating platforms, vibrating screens, etc.), in the manufacture of concrete products, unloading of bunkers, conveyor transportation of materials, etc.
These drives are suitable for continuous operation at full power, have a reliable design, resistant to loads of various kinds. Excellent performance and durability of the application. The housing is reliably protected from dust and water penetration, a wide range of permissible operating temperatures.
Technical characteristics of Webac vibrators of the WEV series
- Centrifugal (driving) force: 343 - 245000 N;
- Static moment: 12 - 28890 kgmm;
- Power consumption: 0.08 - 18.3 kW;
- Current: 0.2 - 31.8 A;
- Supply voltage: standard 230/400 V (3 phase AC, 50 Hz), on request from 42 to 690 V (3 phase AC, 50 Hz);
- Rotation speed: 750 /1000 /1500 /3000 rpm;
- The degree of protection of the case: IP66;
- Insulation class: F;
- Operating temperature range: -30 … +40 °C;
Standard sizes of Webac WEV motor vibrators (2-pole version, 3000 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Consumed power, kW | Current, A |
WEV/03/14/2 | 1180 | 12 | 0,17 | 0,33 |
WEV/05/14/2 | 2010 | 20 | 0,17 | 0,33 |
WEV/10/14/2 | 3140 | 32 | 0,25 | 0,57 |
WEV/15/14/2 | 5100 | 52 | 0,43 | 0,76 |
WEV/25/14/2 | 7850 | 80 | 0,61 | 1,0 |
WEV/35/14/2 | 11300 | 114 | 0,95 | 1,6 |
WEV/38/14/2 | 15700 | 159 | 1,9 | 3,2 |
WEV/40/14/2 | 23100 | 234 | 2,1 | 3,4 |
WEV/45/14/2 | 31900 | 324 | 3,8 | 6,2 |
WEV/55/14/2 | 39200 | 399 | 3,8 | 6,2 |
WEV/67/14/2 | 62800 | 636 | 5,3 | 8,8 |
WEV/71/14/2 | 88300 | 895 | 9,4 | 17 |
Standard sizes of Webac WEV motor vibrators (4-pole version, 1500 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Consumed power, kW | Current, A |
WEV/03/02/4 | 343 | 14 | 0,08 | 0,20 |
WEV/05/02/4 | 785 | 32 | 0,08 | 0,20 |
WEV/10/02/4 | 2160 | 87 | 0,16 | 0,38 |
WEV/20/02/4 | 4120 | 167 | 0,28 | 0,57 |
WEV/30/02/4 | 7360 | 298 | 0,50 | 0,88 |
WEV/35/02/4 | 10,800 | 437 | 0,52 | 0,9 |
WEV/38/02/4 | 13700 | 556 | 0,85 | 1,37 |
WEV/40/02/4 | 17700 | 714 | 1,1 | 1,91 |
WEV/41/02/4 | 20600 | 833 | 1,3 | 2,4 |
WEV/50/02/4 | 24500 | 992 | 1,5 | 3 |
WEV/53/02/4 | 30900 | 1250 | 1,8 | 3,6 |
WEV/55/02/4 | 37300 | 1508 | 2,1 | 3,8 |
WEV/57/02/4 | 43200 | 1746 | 2,4 | 4,6 |
WEV/60/02/4 | 49100 | 1984 | 3,4 | 5,7 |
WEV/67/02/4 | 64700 | 2619 | 5,7 | 10 |
WEV/71/02/4 | 80400 | 3175 | 6,6 | 11 |
WEV/81/02/4 | 83400 | 3373 | 7,1 | 11,5 |
Standard sizes of Webac WEV motor vibrators (6-pole version, 1000 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Consumed power, kW | Current, A |
WEV/20/02/6 | 1960 | 179 | 0,18 | 0,48 |
WEV/30/02/6 | 2940 | 268 | 0,33 | 0,68 |
WEV/35/02/6 | 4910 | 446 | 0,33 | 0,71 |
WEV/38/02/6 | 7850 | 714 | 0,64 | 1,3 |
WEV/40/02/6 | 10800 | 982 | 0,71 | 1,6 |
WEV/41/02/6 | 14700 | 1339 | 0,90 | 2,0 |
WEV/50/02/6 | 16700 | 1518 | 1,0 | 2,1 |
WEV/53/02/6 | 21600 | 1964 | 1,4 | 2,8 |
WEV/55/02/6 | 25500 | 2321 | 1,8 | 3,9 |
WEV/57/02/6 | 30400 | 2767 | 2,1 | 4,3 |
WEV/60/02/6 | 38300 | 3482 | 2,4 | 4,8 |
WEV/62/02/6 | 47100 | 4285 | 3,1 | 6,3 |
WEV/65/02/6 | 52000 | 4732 | 3,6 | 6,7 |
WEV/67/02/6 | 62800 | 5714 | 4,1 | 7,7 |
WEV/71/02/6 | 79500 | 7232 | 6,6 | 11,9 |
WEV/75/02/6 | 85300 | 7768 | 7,1 | 13,2 |
WEV/81/02/6 | 96100 | 8750 | 7,2 | 12,8 |
WEV/110/02/6 | 111000 | 10089 | 9,2 | 16,3 |
WEV/130/02/6 | 128000 | 11607 | 9,2 | 16,3 |
WEV/141/02/6 | 139000 | 12679 | 10,2 | 18,3 |
WEV/171/02/6 | 172000 | 15625 | 12,5 | 23,6 |
WEV/221/02/6 | 221000 | 20090 | 18,3 | 31,8 |
WEV/250/02/6 | 245000 | 22322 | 18,3 | 31,8 |
Standard sizes of Webac WEV motor vibrators (8-pole version, 750 rpm)
Type vibration motors | Centrifugal power, N | Static The moment, kgmm | Consumed power, kW | Current, A |
WEV/20/02/8 | 1110 | 179 | 0,21 | 0,8 |
WEV/30/02/8 | 1960 | 317 | 0,33 | 1,0 |
WEV/35/02/8 | 2760 | 446 | 0,26 | 0,57 |
WEV/38/02/8 | 4410 | 714 | 0,37 | 1,1 |
WEV/40/02/8 | 6100 | 982 | 0,37 | 1,3 |
WEV/50/02/8 | 9400 | 1518 | 0,90 | 2,1 |
WEV/53/02/8 | 12000 | 1937 | 1,05 | 2,5 |
WEV/55/02/8 | 14300 | 2321 | 1,4 | 3,6 |
WEV/60/02/8 | 21500 | 3482 | 1,9 | 5,1 |
WEV/62/02/8 | 26500 | 4285 | 2,4 | 5,8 |
WEV/65/02/8 | 29200 | 4732 | 2,7 | 6,2 |
WEV/67/02/8 | 35300 | 5714 | 3,8 | 7,7 |
WEV/71/02/8 | 44700 | 7232 | 4,7 | 9,4 |
WEV/81/02/8 | 78500 | 12700 | 6,4 | 12,5 |
WEV/141/02/8 | 113000 | 18254 | 8,7 | 19,9 |
WEV/171/02/8 | 132000 | 21430 | 9,8 | 20,8 |
WEV/221/02/8 | 179000 | 28890 | 11,8 | 25,1 |
You can buy Webac WEV vibration motors, find out the price and more information about the product by contacting our specialists.
