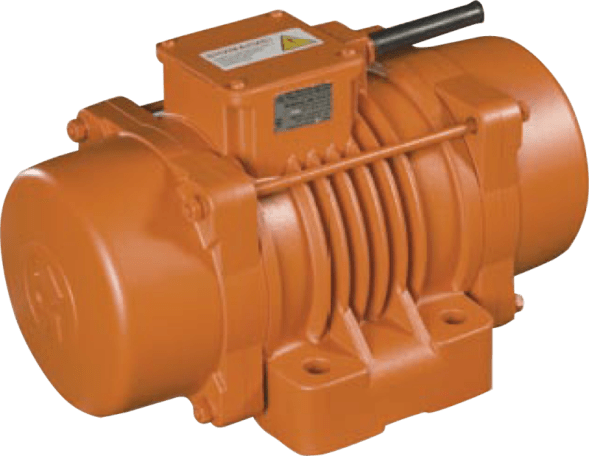

The IV-107A site vibrator is a device used for industrial needs in various fields of construction. This vibration technology is convenient to use, due to its compactness and light weight (only 40 kilograms). The device operates from a 42W power supply, which guarantees its safe use. The convenient design makes it easy to attach the IV-107A vibrator to almost any surface. The power of the machine is 1.5 kW.
The principle of operation
The principle of operation of the IV-107A site vibrator consists in converting mechanical energy into electrical energy by means of an electric motor with a short-circuited rotor and unbalances. Due to its high level of reliability and good technical characteristics, the IV-107 is popular in the construction industry and agriculture.
General purpose electromechanical vibrator with circular vibrations IV-107A and general-purpose electromechanical vibrators with circular vibrations of increased reliability IV-107N, IV-107A-P, IV-107A-1.5 and IV-107N-1.5 They are designed to excite vibration in installations for compacting concrete mixtures and soils, transporting, unloading and sieving bulk materials, driving vibrating feeders, vibrating pads, various types of vibrating screens and other technological works.
Vibrators are a three-phase asynchronous electric motor with a short-circuited rotor with unbalances mounted at the ends of the rotor shaft. The unbalances, rotating with the rotor shaft, create a driving force.
To regulate the magnitude of the driving force of the vibrator, the unbalances at both ends of the shaft are double. The adjustment is carried out by changing the angle between the movable and fixed unbalances at both ends of the shaft.
Vibrators of increased reliability are increased dust and moisture protection, cast–iron shields are for IV-107N and IV-107N–1.5 or aluminum shields – for IV-107A-P and IV-107A-1.5, increased winding strength, selective assembly. Increased working life (at least 3 times).
Vibrators can work with an adjustable electronic frequency converter, which allows you to change the vibration frequency from 0 to 1.5 nominal, within the permissible value of the driving force, save electricity, limit starting currents, choose the optimal mode of operation.
Technical characteristics:
|
Rated power consumption IV-107A, IV-107N and IV-107A-P, kW |
1,5 |
|
Rated power IV-107A-1.5, IV-107N-1.5 kW … |
2,05 |
|
Rated voltage, V ………… |
42; 220; 380 |
|
Rated current frequency, Hz ................. |
50 |
|
The oscillation frequency is synchronous, Hz |
50 |
|
Static moment, kg×cm …………………… |
10,0…20,0 |
|
Driving force at the idle oscillation frequency, kN ........... |
8,05…16,1 |
|
Overall dimensions, mm ……………………… |
460x300x280 |
Connection dimensions, mm ................ |
130x240 A 22 |
|
Weight IV-107A and IV-107A-P, kg ................ |
40 |
|
Weight IV-107N, kg .................................. |
46 |
|
Weight IV-107A-1.5, kg .............................. |
41 |
|
Weight IV-107N-1.5, kg………………………… |
47 |
