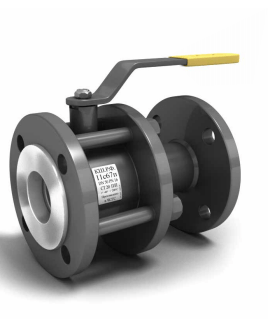

Full-bore collapsible ball valve LD PN25, Steel 20 /Stainless steel. 1.4308 /PTFE steel, flange/flange
FULL-BORE BALL VALVE
SPECIFICATION OF MATERIALS (VERSION 02)
- Body: carbon steel 20
- Spindle: corrosion-resistant steel (20X13)
- Ball: corrosion-resistant steel
- DN 25 - 32: 20Х13; DN 40 - 65: AISI 304; DN 80 - 150: AISI 409
- Spindle seal: EPDM, fluorosiloxane elastomer
- Sliding bearing: Fluoroplast F-4
- Ball seal: F-4K20 fluoroplast with a duplicate seal made of fluorosiloxane elastomer
management
• DN 25 - 150: painted carbon steel handle with polymer tip;
• DN 150: A mechanical gearbox with a worm gear is recommended.
CONNECTION DIMENSIONS according to GOST 33259
