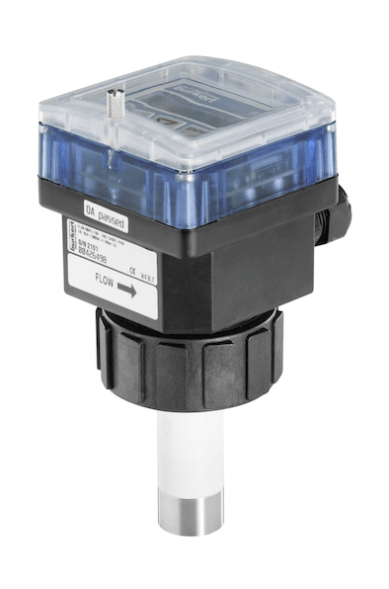

Submersible Electromagnetic Induction Flow Meter (426506)

The electromagnetic flowmeter type 8045 consists of an electronic module with a backlit display, control buttons and a sensor made of PVDF or stainless steel. The flow meter is designed for installation in pipes with a diameter of DN06 - DN400 to work with neutral as well as aggressive liquids with a conductivity of over 20 microns/cm. The type 8045 is equipped with a current output of 4...20 mA and digital output (default setting as pulse output). Some versions are equipped with two relay outputs and a digital input. Two independent counters allow you to calculate the total consumption. Available process connections: - G2" connection for version with PVDF sensor; - G2" connection or quick-release connection (clamp) for version with stainless steel sensor. The stainless steel sensor version is suitable for high pressure (PN16) and high temperature (110 °C) applications. The version with Alloy C22 electrodes is designed to work with aggressive liquids (chemicals) and, in particular, with seawater.
