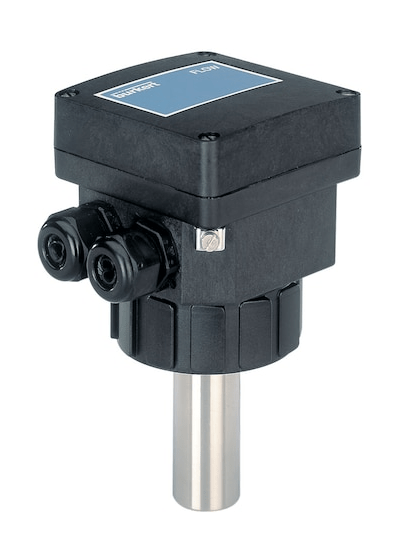

Submersible Electromagnetic Induction Flow Meter (552779)

The electromagnetic flowmeter type 8041 consists of an electronic module and a sensor made of PVDF or stainless steel. The flow meter is designed for installation in pipelines with a diameter of DN06 - DN400 to work with neutral as well as aggressive liquids with a conductivity of over 20 microns/cm. The type 8041 is equipped with a current output of 4...20 mA, pulse and relay outputs. The device is configured using five DIP switches, a button and an LED with 10 fields. The flow meter is available: - with connection G2" for version with PVDF sensor; - with connection G2" or quick-release connection (clamp) for version with stainless steel sensor. The stainless steel sensor version can be used for high pressure (PN16) and high temperatures (150 °C).
