Construction
Submersible electric pumps
Overview of technical data

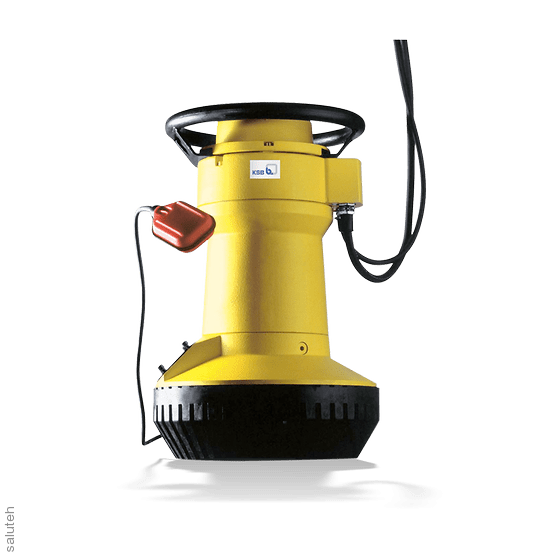

Vertical single-stage fully submerged submersible electric pump of monoblock design, IP 68, with or without a level switch, with a maximum immersion depth of 10 m. Scope of application: for automatic drainage of pits, pits, flooded yards and basements, for lowering the groundwater level, drainage, pumping water from underground passages, water intake from rivers and reservoirs.
| Q (50Hz) | 0.0 – 130.0 (m³/h) |
| H (50Hz) | 4.5 – 26.0 (m) |
| Type of bearing | ball bearing |
| Drive | electric motor |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 400 V, 3~ |
| Explosion protection | WITHOUT |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | JL1040 |
| Type of coupling | directly |
| Type of lubricant | grease |
| Max. permissible liquid temperature | 50 (°C) |
| Installation of the unit | "wet" installation |
| Shaft material (according to EN standard) | 1.4021 |
| Suction characteristics | self-priming |
| Type of impeller | free-swirl impeller, open |
| Type of connection | carving |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | JL1040 |
| eClass | 36410101, 36410100, 36410000 |
| Max. free passage | 12 (mm) |
| Installation position | vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | wastewater, Building engineering equipment, Water supply |
| Housing material | grey cast iron |
| Max. drive power | 7,50 (kW) |
| Type of installation | portable, stationary |
| Max. rotation speed | 2800 (1/min) |
Features
Brand
KSB
