Main application areas
- Biogas
- Water
- Water intake
- Mining
- Polluted water
- Flood control measures, sanitation

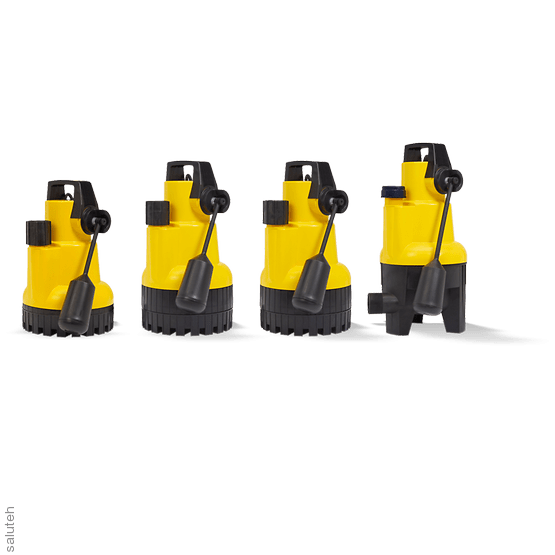

Vertical single-stage fully submerged submersible electric pump of monoblock design, IP 68, with or without a level switch, with a maximum immersion depth of 10 m. Scope of application: for automatic drainage of pits, pits, flooded yards and basements, for lowering the groundwater level, drainage, pumping water from underground passages, water intake from rivers and reservoirs.
Overview of technical data
| Q (50Hz) | 0.0 – 16.5 (m³/h) |
| H (50Hz) | 0.0 – 12.0 (m) |
| Type of bearing | ball bearing |
| Drive | electric motor |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 230 V, 1~ |
| Explosion protection | WITHOUT |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | NORYL, POLYAMIDE |
| Type of lubricant | grease |
| Max. permissible liquid temperature | 50 (°C) |
| Suction characteristics | non-self-priming |
| Type of impeller | open, free-swirl impeller |
| Type of connection | carving |
| Housing material (according to EN standard) | PLASTIC |
| Installation position | vertical |
| Type of shaft seal | shaft sealing ring |
| Main application areas | Water supply, wastewater, Building engineering equipment |
| Housing material | artificial material |
| Max. drive power | 1,05 (kW) |
| Type of installation | portable, stationary |
| Max. rotation speed | 2800 (1/min) |
Features
Brand
KSB
