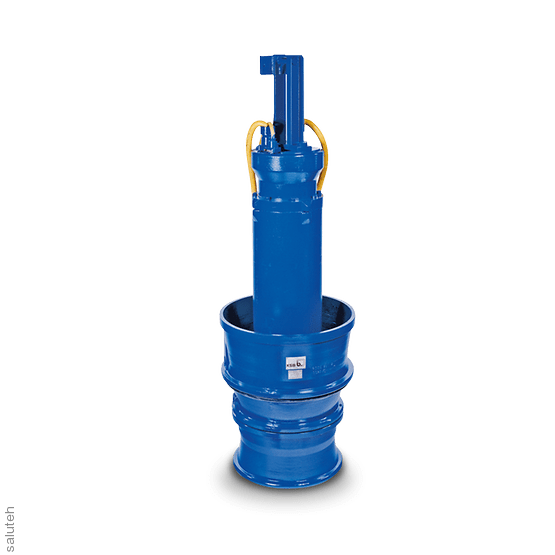

Submersible single-stage single-flow electric pump for wet installation in a pipe shaft, with a self-cleaning axial propeller (Ever Clean Blade). Scope of application: for use in irrigation and drainage pumping stations, stormwater pumping stations, for pumping raw and clean water, hydraulic structures, wastewater treatment systems, pumping cooling water at power plants and industrial enterprises, industrial water supply, for water protection and emergency prevention, for aquaculture.
Overview of technical data
| Q (50Hz) | 360.0 – 25200.0 (m³/h) |
| H (50Hz) | 0.8 – 12.0 (m) |
| Type of bearing | rolling bearing |
| Separation of the body | transverse (radial) |
| Drive | electric motor |
| Drive motor frequency | 50 Hz /60 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| Electrical connector | 380 V, 400 V, 690 V, 3~ |
| Explosion protection | ATEX II 2G T3 |
| Number of impeller inputs | single-threaded |
| Impeller material (according to E standard | 1.4517 |
| Type of installation | block |
| Type of coupling | without |
| Type of lubricant | grease |
| Max. permissible liquid temperature | 40 (°C) |
| The position of the nozzle | execution of the "in-line" type |
| Installation of the unit | 00 |
| Shaft material (according to EN standard) | 1.4057.05, 1.4021.05 |
| Suction characteristics | non-self-priming |
| Housing type | tubular housing |
| Type of impeller | axial, open, propeller |
| Housing material (according to EN standard) | JL 1030 |
| eClass | 36410101, 36410106 |
| Max. free passage | 255 (mm) |
| Installation position | vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Energy, Mining /Dredging, Water supply, Wastewater |
| Housing material | grey cast iron |
| Max. drive power | 700 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 1750 (1/min) |
Features
Brand
KSB
