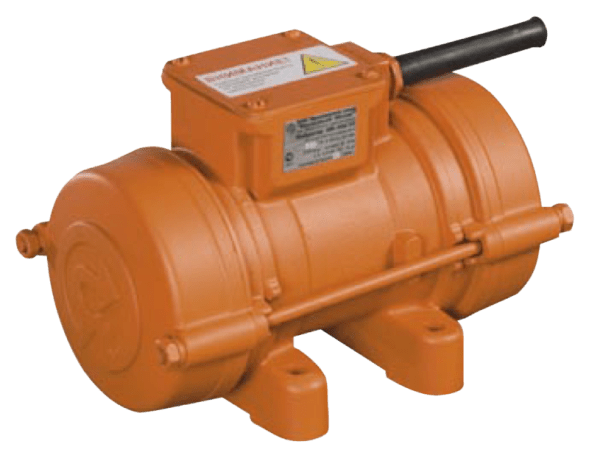

The high-frequency surface vibrator IV-14–100 is designed to perform a wide range of construction works, in particular, compaction of concrete mix and soils, dispersion of bulk materials - sand, crushed stone, expanded clay. The vibrator is often used as part of vibrating equipment, such as vibrating plates, tampers, vibrating screens. Reliability, increased working life, affordable cost, simple design and other advantages make the IV-14-100 model popular.
The principle of operation
The vibrator of this model is a high-frequency equipment that converts electric current into vibration. For the operation of the IV-14-100, it is necessary to connect to a 380V power supply network. Vibration vibrations with a force of 0...14.0 kN are created on the surface of the device where the vibrator is located. It is possible to adjust the vibration force by changing the angle between the movable and static unbalance located on both sides of the shaft. The model has a special design that ensures the stability of the unit. The mass of the vibrator is 16 kilograms, which makes it convenient to use.
