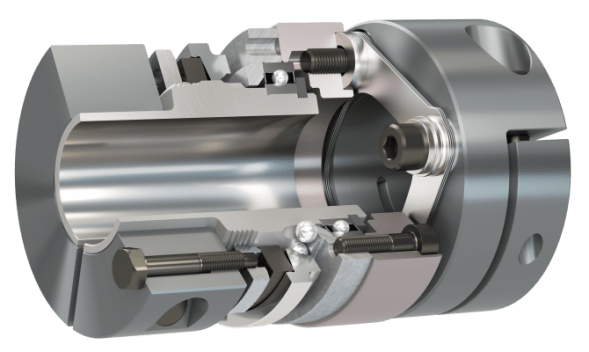

Synchronous safety couplings Mayr EAS-smartic The shafts are instantly disconnected when the load limit is reached and the nodes are automatically reconnected when the overvoltage of the drive is removed. Excellent performance of the dynamics of operation, accurate transmission of power characteristics from the leading to the driven axis, ease of setting the required values for the operation of the limiters. They are suitable for a wide range of production installations.
The model range includes several structural versions of the mounting version: flange couplings for connecting drive elements (gears, pulleys, etc.), non-locking (with elastic insert of various hardness) and especially torsion-resistant couplings for connecting two shafts with offset compensation, various combinations of modular mounting elements are also available.
Technical characteristics of synchronous couplings Mayr EAS-smartic
- Maximum torque: 2.7 - 500 Nm;
- Max. speed: 2000 - 3000 rpm;
- Outer diameter: 55 - 100 mm;
- Diameter of the sleeve: 10 - 50 mm.
Parameters of standard sizes of synchronous torque limiter couplings Mayr EAS-smartic
Type of coupling | The limit torque moment, Nm | Max. speed, rpm | Diameter bushings, mm |
flanged design, versions of the keyway sleeve (481._25.0), with a clamping ring (481._35.0) or a variation of the keyway sleeve (481._45.0) | |||
01/481.2_5.0, 01/481.3_5.0, 01/481.4_5.0, 01/481.5_5.0, 01/481.6_5.0, 01/481.7_5.0, 01/481.8_5.0 | 2,7 - 60 | 3000 | 10 - 22 |
0/481.2_5.0, 0/481.3_5.0, 0/481.4_5.0, 0/481.5_5.0, 0/481.6_5.0, 0/481.7_5.0, 0/481.8_5.0 | 5 - 120 | 3000 | 14 - 32 |
1/481.2_5.0, 1/481.3_5.0, 1/481.4_5.0, 1/481.5_5.0, 1/481.6_5.0, 1/481.7_5.0, 1/481.8_5.0 | 10 - 240 | 2500 | 19 - 42 |
2/481.2_5.0, 2/481.3_5.0, 2/481.4_5.0, 2/481.5_5.0, 2/481.6_5.0, 2/481.7_5.0, 2/481.8_5.0 | 20 - 500 | 2000 | 20 - 50 |
lockless design with elastic insert, versions of the sleeve with a keyway on both sides (484._25._), clamping on both sides (484._35._) and clamping + with a keyway (484._45._) | |||
01/484.2_5._, 01/484.3_5._, 01/484.4_5._, 01/484.5_5._, 01/484.6_5._, 01/484.7_5._, 01/484.8_5.0 | 2,7 - 60 | 3000 | 10 - 22 |
0/484.2_5._, 0/484.3_5._, 0/484.4_5._, 0/484.5_5._, 0/484.6_5._, 0/484.7_5._, 0/484.8_5.0 | 5 - 120 | 3000 | 14 - 32 |
1/484.2_5._, 1/484.3_5._, 1/484.4_5._, 1/484.5_5._, 1/484.6_5._, 1/484.7_5._, 1/484.8_5.0 | 10 - 240 | 2500 | 19 - 42 |
2/484.2_5._, 2/484.3_5._, 2/484.4_5._, 2/484.5_5._, 2/484.6_5._, 2/484.7_5._, 2/484.8_5.0 | 20 - 500 | 2000 | 20 - 50 |
increased torsional rigidity, versions of the bushing with a keyway (486._25.0), with a clamping ring (486._35.0) or a variation of the clamping sleeve with a keyway (486._45.0) | |||
01/486.2_5.0, 01/486.3_5.0, 01/486.4_5.0, 01/486.5_5.0, 01/486.6_5.0, 01/486.7_5.0 | 2,7 - 40 | 3000 | 10 - 22 |
0/486.2_5.0, 0/486.3_5.0, 0/486.4_5.0, 0/486.5_5.0, 0/486.6_5.0, 0/486.7_5.0 | 5 - 80 | 3000 | 14 - 32 |
1/486.2_5.0, 1/486.3_5.0, 1/486.4_5.0, 1/486.5_5.0, 1/486.6_5.0, 1/486.7_5.0 | 10 - 160 | 2500 | 19 - 42 |
2/486.2_5.0, 2/486.3_5.0, 2/486.4_5.0, 2/486.5_5.0, 2/486.6_5.0, 2/486.7_5.0 | 20 - 320 | 2000 | 20 - 50 |
