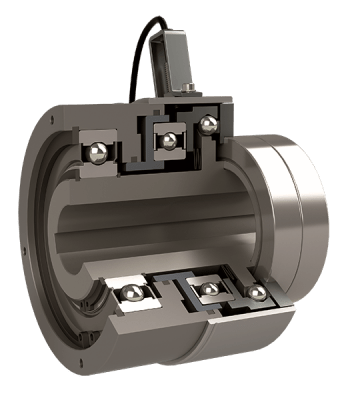

Safety couplings Mayr with pneumatic (series EAS-Sp) and electric (series EAS-Sm, EAS-Zr) switching and stepless setting of limit values for the limiter. When critical loads are reached, these mechanisms ensure rapid uncoupling of the drive components without residual torque in order to avoid damage to the equipment. Easy to install, high response accuracy, low inertia.
Synchronous engagement via full rotation for EAS-Sp /EAS-Sm and in 15 degree increments for the EAS-Zr series. The entire range can be equipped with a cover to protect against dust and dirt. There are great opportunities for additional tooling and fine-tuning of operating parameters in relation to specific production tasks.
An excellent offer for working as part of automated lines of various industry orientation, including for use in difficult production conditions.
Technical characteristics of safety couplings Mayr EAS-Sp /EAS-Sm /EAS-Zr
- Maximum torque: 4 - 2500 Nm;
- Max. speed: 500 - 5000 rpm;
- Outer diameter: 76 - 285 mm;
- Diameter of the sleeve: 8 - 95 mm.
Parameters of standard sizes of torque limiter couplings Mayr EAS-Sp
Type of coupling | The limit The torque, Nm | Max. speed, rpm | Diameter bushings, mm |
standard version | |||
01/450.125.H, 01/450.125.L | 4 - 40 | 5000 | 10 - 20 |
0/450.125.0 | 15 - 75 | 4000 | 12 - 22 |
1/450.125.0 | 25 - 150 | 2500 | 15 - 35 |
2/450.125.0 | 50 - 200 | 2000 | 20 - 42 |
3/450.125.0 | 100 - 500 | 2000 | 20 - 50 |
4/450.125.0 | 200 - 1000 | 1500 | 25 - 65 |
5/450.125.0 | 500 - 2500 | 500 | 38 - 95 |
particularly rigid construction, increased resistance to torsion | |||
0/456.125.8 | 15 - 75 | 4000 | 12 - 22 |
1/456.125.8 | 25 - 150 | 2500 | 15 - 35 |
2/456.125.8 | 50 - 200 | 2000 | 20 - 42 |
3/456.125.8 | 100 - 500 | 2000 | 20 - 50 |
4/456.125.8 | 200 - 1000 | 1500 | 25 - 65 |
5/456.125.8 | 500 - 2500 | 500 | 38 - 95 |
Parameters of standard sizes of torque limiter couplings Mayr EAS-Sm /EAS-Zr
Type of coupling | The limit torque moment, Nm | Max. speed, rpm | Diameter bushings, mm |
standard version | |||
0/400.036._, 0/400.038._ | 6 - 25 | 4000 | 9 - 22 |
1/400.036._, 1/400.038._ | 12 - 50 | 3000 | 14 - 35 |
2/400.036._, 2/400.038._ | 25 - 100 | 2500 | 19 - 42 |
3/400.036._, 3/400.038._ | 50 - 200 | 2000 | 22 - 50 |
4/400.036._, 3/400.038._ | 100 - 375 | 2000 | 24 - 60 |
particularly rigid construction, increased resistance to torsion | |||
0/436.036._, 0/436.038._ | 6 - 25 | 4000 | 8 - 28 |
1/436.036._, 1/436.038._ | 12 - 50 | 3000 | 8 - 38 |
2/436.036._, 2/436.038._ | 25 - 100 | 2500 | 12 - 45 |
3/436.036._, 3/436.038._ | 50 - 200 | 2000 | 15 - 55 |
4/436.036._, 3/436.038._ | 100 - 375 | 2000 | 20 - 65 |
You can buy Mayr EAS-Sp /EAS-Sm /EAS-Zr safety couplings, find out the price and more information about the products by contacting our specialists.
