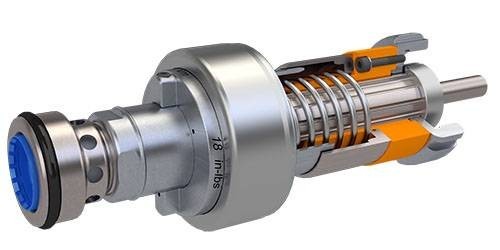

Couplings for load retention Mayr ROBA-capping head with built-in capping head for non-returnable/returnable PET bottles and non-returnable glass bottles. Plastic caps with shaped threads are used for wrapping. This engineering solution is widely used in the food, chemical, cosmetic and pharmaceutical industries.
Exceptional accuracy of repetition of the closing moment provided by the hysteresis coupling, high resistance to wear. Stainless steel is used as materials, the closed design of the structure does not allow dirt to enter. They are suitable for use in aggressive environments and with hygienic treatment procedures.
Technical characteristics of the Mayr ROBA-capping head safety couplings
- Nom. moment: 0.5 - 53 Nm;
- Max. speed: 450 rpm;
- Outer diameter: 82 - 104 mm;
- Release progress: 35 - 40 mm.
Parameters of standard sizes of torque limiter couplings Mayr ROBA-capping head
Type of coupling | The limit moment, Nm | Max. speed, rpm |
3/1114.00000, 3/1114.01000, 3/1114.02000 3/1113.00000, 3/1113.01000, 3/1113.02000 3/1114.00240, 3/1114.01240, 3/1114.02240 3/1113.00240, 3/1113.01240, 3/1113.02240 3/1114.44002, 3/1113.44002 | 0,5 - 27 | 450 |
4/1113.00000, 4/1113.01000, 4/1113.02000 4/1113.00240, 4/1113.01240, 4/1113.02240 4/1113.44002 | 0,5 - 53 |
You can buy safety couplings with a Mayr ROBA capping head, find out the price and more information about the products by contacting our specialists.
