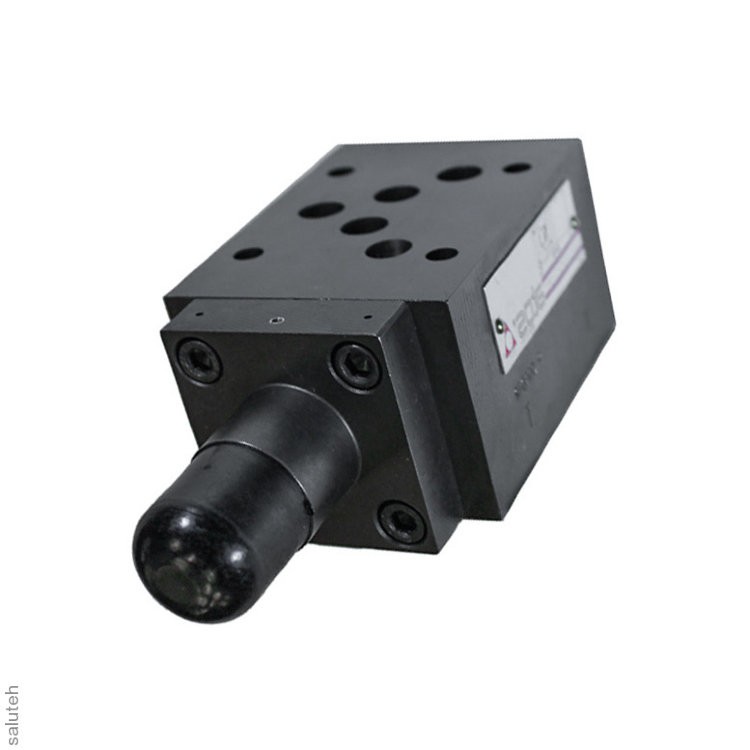

Safety valve Atos HM-012/350

Safety valves HM and KM

They are designed to work in hydraulic systems with mineral oil or synthetic liquid with similar lubricating characteristics.

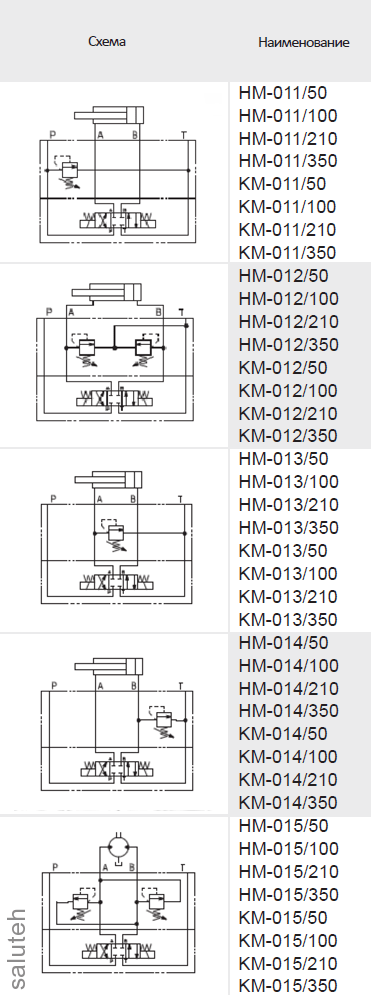

HM and KM are two–stage with an unloaded plate 1. Pressure adjustment is carried out by loosening the lock nut 2 and turning the screw 3, closed with a cap 4. On request, an option with a handle 5 instead of a screw is available.
Turning clockwise increases the pressure.

NM=size 06 according to ISO 4401;
Maximum flow rate: 60 l/min;
maximum pressure up to 350 bar

NM=size 10 according to ISO 4401;
Maximum flow rate: 60 l/min;
Max. pressure 5-350 bar
DN 6
