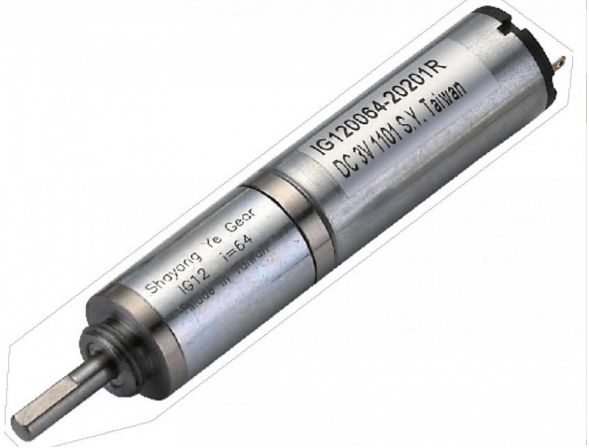

IG-12GM is a small-sized planetary gear motor
Series gear motor IG-12GM It consists of a reversible DC collector motor and a planetary gearbox.
- The electric motor is maintenance-free.
- Gear ratios of gearboxes are 4~4096.
- The mode of operation is continuous.
- It is possible to complete the encoder
Characteristics of a gear motor with a 3V motor (02 TYPE)
| Gear ratio | Torque, g•cm | Speed, rpm | Gear ratio L, mm |
Gear ratio L, mm |
| 4 16 64 256 1024 4096 |
19 65 230 780 2000 2000 |
2550 640 160 40 10,1 2,8 |
1/4 12,9 1/256 23,1 1/16 16,5 |
1/1024 26,4 1/64 19,8 1/4096 29,7 |
Characteristics of electric motors
<Features
Gear ratio i=
4096
Brand
King Right
