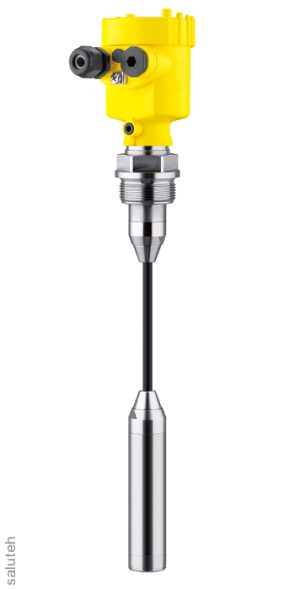

Pressure converter B86 .RXAD3PAKDHXKIMXX L=8450mm

Pressure transducer B86.RXAMAXAGCHXKTMXX L=3m

The VEGABAR 86 suspended pressure transmitter with a carrier cable or a carrier tube is designed to measure the level in wells, pools and open containers.

Thanks to the various designs, the VEGABAR 86 can be used in various conditions

Features

• Ceramic measuring cell with the highest resistance to overpressure and vacuum
• Self-cleaning effect, thanks to flush mounting
• Wear-resistant ceramic measuring cell, low maintenance cost

Technical data

• Measuring cell :    CERTEC®
• Sensor diameter:    32 mm
• Measuring range:    0 ... +25 bar (0 ... +2500 kPa)
• Joining:    tension clamp, threaded connection, thread from G1½, 1½ NPT, flanges from DN 40, 2"
• Process temperature:    -20 … +100 °C
• Accuracy class
