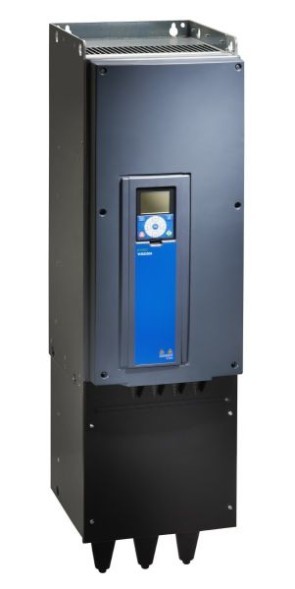

The frequency converter of the new model range for automation systems. For Vacon 100 There are no impossible tasks in various fields of industry, heating, ventilation and air conditioning!
Vacon 100/FLOW/HVAC stands for impeccable quality and reliability, easy installation, trouble-free operation, long service life.
The main advantages and features of Vacon 100/FLOW/HVAC:
Vacon 100/FLOW/HVAC stands for impeccable quality and reliability, easy installation, trouble-free operation, long service life.
The main advantages and features of Vacon 100/FLOW/HVAC:
- Input voltage: 1~208...240 V, 3~380...480 V
- Power range: 1.1...160 kW
- Управление по различным интерфейсам (шинам): EtherNet IP (BacNet IP,ModBus TCP), RS-485 (ModBus RTU, Metasys N2, BACnet MSTP).
- Inputs: 6 digital and 2 analog.
- Input for the motor thermistor.
- Outputs: 3 relay and 1 analog.
- Graphical control panel.
- The startup wizard.
- A non-volatile real-time clock with a calendar.
- Dual-zone PID controller.
- Built-in PLC (Vacon 100).
- Built-in DC choke.
- Built-in common-mode interference filter.
- Built-in EMC filter of class C2.
- Built-in brake interrupter (up to 30 kW - only for Vacon 100).
- Integration of IP21 units into cabinets.
- Installation of up to 3 expansion boards.
- Flange mounting (optional).
- Built-in power switch (option for MR4...MR7).
- Two PID controllers.
- Sleep Mode/The Awakening.”
- Fire mode for fire pumps and smoke extraction systems.
- Safe torque shutdown (meets ATEX requirements).
- Galvanic isolation of inputs/outputs.
- Control of make-up pumps and backup pumps.
- Saving 30-60% of the electricity consumed.
- The drive efficiency is up to 97%.
- The ability to control 8 electric motors.
- Low noise level (65...87 dbA).
- Universal software.
- 100% European configuration and assembly.
- The global average bounce rate is 0.03%!
- The service life is 10 years.
- Innovative capacitors.
- Made in Finland!
