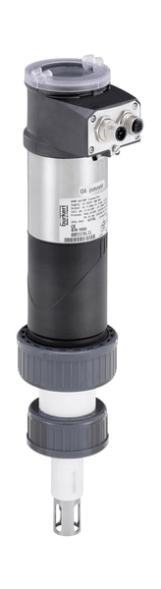

pH or ORP level measuring device (562557)

The Model 8202 is a compact device for determining the pH value and redox potential (ORP). pH value: in clean, contaminated, sulfide- or protein-containing liquids. ORP: in clean, contaminated, sulfide- or protein-containing liquids, as well as in liquids with low electrical conductivity. The design developed by Burkert simplifies installation and maintenance work. The display is only needed for commissioning, configuration changes (e.g., pH/ORP selection, range, units of measurement, calibration, limit values, etc.) or to indicate process parameters. The 8202 model is available in the following versions: - with three programmable outputs - two digital and one analog outputs; - with four programmable outputs: two digital and two analog outputs. The Model 8202 converts the measured signal, displays different values in different units of measurement (with the display connected) and processes output signals transmitted via one or two M12 plug connections.
