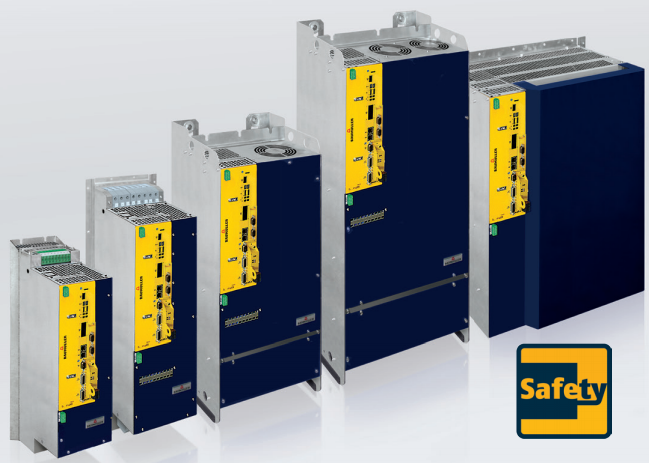

Baumuller B maXX 5600 /5700 AC drives (BM5600/BM5700)

A series of specialized servo converters b maXX 5600 /5700 expands the standard peak load power data with new values. An excellent solution for applications such as injection molding, extrusion of materials. These drives are optimized as much as possible for these applications and meet the requirements of operation in modes that provide either short-term peak power or constant maximum values throughout the entire operating cycle.

The model range consists of five overall dimensions, all of which are characterized by a very compact design relative to their power data. A practical and economical heat removal system using an aqueous medium is used to cool the converters.

Technical characteristics of Baumuller Series B maXX 5600 /5700 servo converters

• Supply voltage: 3AC 207 - 528 V;
• Output current: 60 - 720 A;
• Configuration: single-axis;
• Output frequency: 0 - 599 Hz;
• Switching frequency: 2, 4, 8 kHz;
• Permissible overloads: for a short time, 110 - 200% of the nom. current (depending on the standard size);
• Enclosure protection class: IP20, IP00 (for models over 75 kW);
• Interfaces: on request EtherCAT, VARAN, CANopen, POWERLINK, ProfiNET RT/IRT;
• Feedback: HIPERFACE, EnDat 2.1, SSI, Quadrature and sine incremental sensor, Resolver, EnDat 2.2, HIPERFACE DSL;
• Visualization and customization tools: LED display, 7-segment display for displaying the current status, PC software;
• Other features and functions: data storage in the drive memory, access authorization, functions of safe torque removal, safe limited speed and position, safe stop, automatic restart and others.

Optional Baumuller b maXX 5600/5700 drive modules

• I/O expansion board.
• Modules for connecting industrial networks.
• Brake control.
• Contactors.

Parameters of standard sizes of Baumuller servos of the maXX 5600/5700 series

You can buy Baumuller servos of the maXX 5600/5700 series, find out the price and more information about the products by contacting our specialists.
