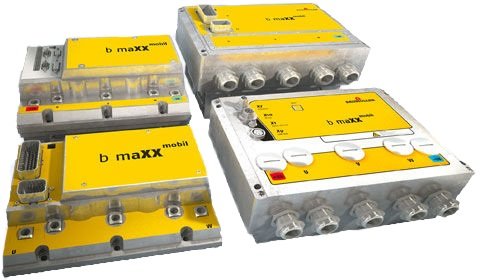

Specialized electric drives of the series b maXX mobil from the company Baumuller They are designed to work as part of mobile technologies (transport, loaders, boats and other similar electric or battery applications). Four-quadrant control mode, switching via car CAN bus, as well as via digital interface and other available extensions on request.
This controller is extremely resistant to such factors characteristic of this type of operation as vibration, cold, and water. Wide ambient temperature range for application. A popular and high-performance wheel hub drive solution, especially when combined with the DSM series of compact and dynamic disc electric motors.
Technical characteristics of Baumuller b maXX mobil drives
- Rated current: 40 - 225 A;
- Maximum current: 80 - 450 A;
- Power supply (battery): 12 - 120 V;
- Built-in interfaces: CAN-Bus, digital;
- Operating temperature: -25 … 65 °C.
- The degree of protection of the case: IP20, IP66.
Standard sizes of Baumuller b maXX mobil electric drives
Type of drive | Current, A | Max. current, A | Power Supply, In |
048-40-x-IP20 | 40 | 80 | 12 - 48 |
048-60-x-IP20 | 60 | 120 | 12 - 48 |
048-125-x-IP20 | 125 | 250 | 12 - 48 |
048-225-x-IP20 | 225 | 450 | 12 - 48 |
048-40-x-IP66 | 40 | 80 | 12 - 48 |
048-60-x-IP66 | 60 | 120 | 12 - 48 |
048-125-x-IP66 | 125 | 250 | 12 - 48 |
048-225-x-IP66 | 225 | 450 | 12 - 48 |
120-50-x-IP20 | 50 | 100 | 12 - 120 |
120-100-x-IP20 | 100 | 200 | 12 - 120 |
120-150-x-IP20 | 150 | 300 | 12 - 120 |
120-50-x-IP66 | 50 | 100 | 12 - 120 |
120-100-x-IP66 | 100 | 200 | 12 - 120 |
120-150-x-IP66 | 150 | 300 | 12 - 120 |
without galvanic isolation | |||
48-40-X-IP20-NI | 40 | 80 | 12 - 48 |
48-60-X-IP20-NI | 60 | 120 | 12 - 48 |
48-125-X-IP20-NI | 125 | 250 | 12 - 48 |
48-225-X-IP20-NI | 225 | 450 | 12 - 48 |
Note: marking X depending on the type of feedback sensors used: RES - resolvers, END - encoders, WITHOUT - sine-cosine incremental sensors.
